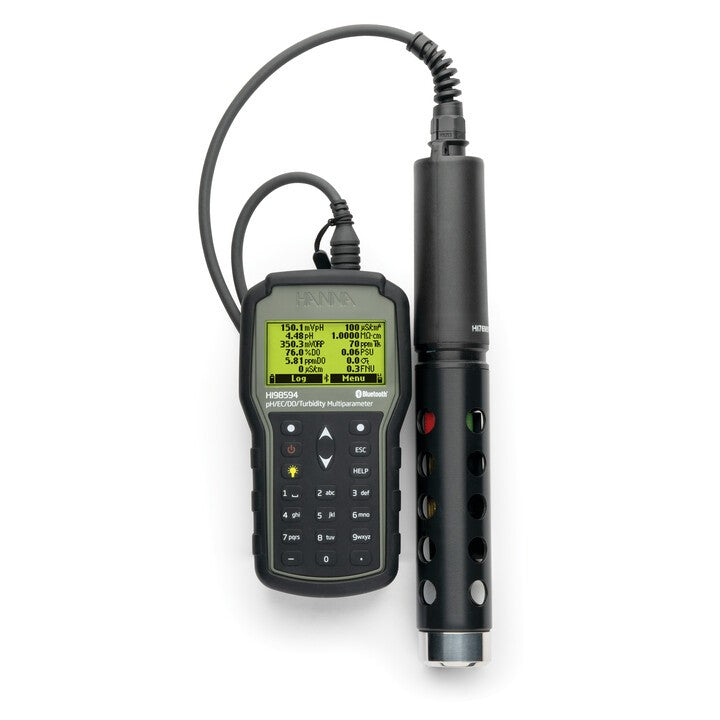

HI-98594 Multiparameter Portable Meter with Bluetooth Connectivity

The HI-98594 Portable Multiparameter Meter is designed to withstand the harsh environmental conditions required for testing in the field, with rugged construction and a practical multi-sensor probe for ease of use across a range of applications. This handheld multimeter measures 14 individual water parameters and meets the IP67 standard, with the probe meeting the IP68 standard for continuous immersion within water.

The HI-98594 features Bluetooth 5.0 with full connectivity to the Hanna Lab app, allowing for easy, reliable cloud-based transfer of data in the field.

This water testing meter is an ideal solution for measurement in a range of sectors, including:

• Surface water measurement
• Seawater measurement
• Wastewater measurement
• Education and research applications
• Groundwater measurement
• Aquaculture monitoring
• Construction and environmental remediation testing

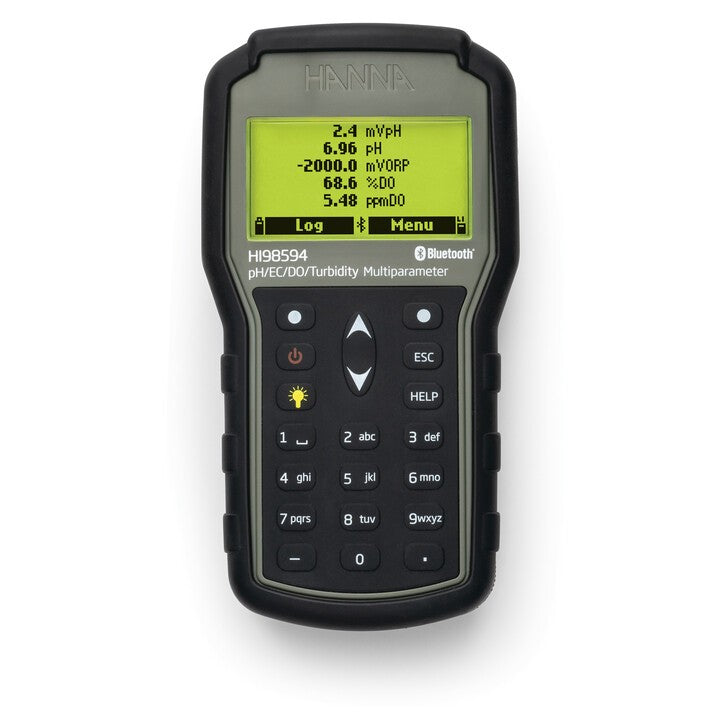

HI-98594 Advanced Multiparameter Meter Features

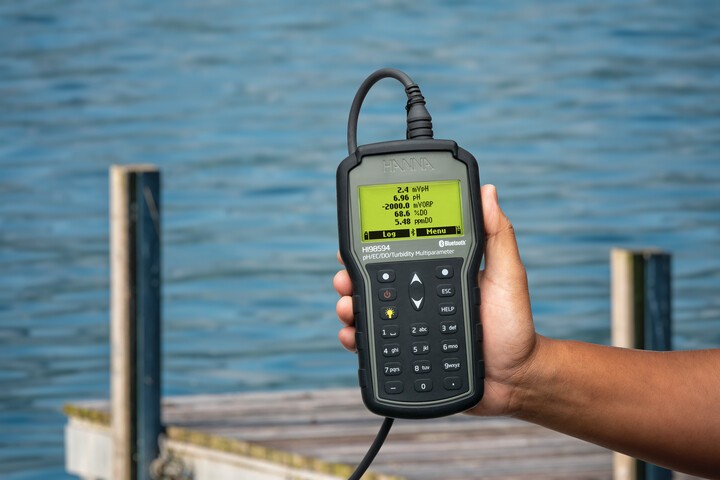

Precision in your palm

The HI-98594 is an advanced, highly accurate handheld meter, providing a rugged and practical solution for measuring water anywhere. The handheld design of this meter allows it to be utilised in a wide range of environments, with a portable carrying case to enable convenient movement to different sites.

Reliable water testing anywhere

This handheld advanced water analysis meter is designed to withstand a wide range of environments and applications, from groundwater analysis to aquaculture monitoring. The multi-sensor probe includes all the necessary sensors for simultaneous measurement, ensuring accuracy in testing results across multiple parameters.

Measure 14 parameters

The HI-98594 is equipped with a multi-sensor probe for the measurement of 14 key water parameters, with the ability to display from 1 to 12 parameters at once on the screen. These parameters include:

• pH
• mV
• ORP
• Dissolved Oxygen (ppm)
• Dissolved Oxygen (%)
• EC
• EC (absolute)
• Resistivity
• TDS
• Salinity
• Seawater σ
• Turbidity
• Atmospheric Pressure
• Temperature

Multi-sensor probe for ease of use

The HI-7698594 probe provides an easy-to-use solution for testing multiple parameters at once. This pre-installed probe includes a combined pH/ORP sensor, a combined EC/Turbidity sensor, an Optical Dissolved Oxygen sensor and a temperature sensor as standard. Simple, screw-type, colour-coded connectors and automatic sensor identification make swapping and changing sensors simple.

High precision everywhere you go

The compact, handheld size of the HI-98594 makes it easily portable and convenient in even the most challenging environments. The addition of a rugged carrying case with a thermoformed, moulded interior ensures all accessories and solutions can be securely stored and easily moved.

Data logging capability

The HI-98594 water parameter meter has the capacity to store up to 50,000 samples at intervals between 1 second and 3 hours. Long-on-demand is available to store measurement data, and all logged information is transferred in a universal .csv format on connection to a computer. No additional software is required to extract data.

Smart solutions for smarter testing

Bluetooth 5.0 connectivity enables the HI-98594 to send data directly to the Hanna Lab application, for completely remote access and transfer via smartphone or tablet. Log-on-demand and automatic logging are available for all parameters, and data can easily be reviewed and shared as an email, removing the time delay typically required to pass data on from fieldwork.

Automatic firmware updates for the meter and probe are available directly through the Hanna Lab app, requiring no computer connection to ensure the meter is up-to-date.

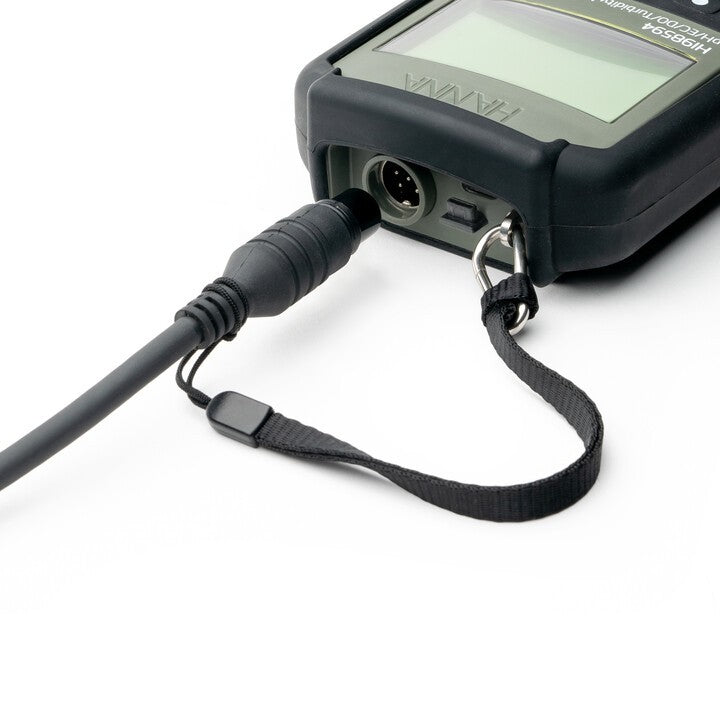

Quick-DIN for waterproof connection

This multiparameter handheld meter connects to the included probe through a single waterproof Quick-DIN connector, making attaching and removing the probe a quick and easy task. The meter automatically detects the probe when connected, with no additional steps required.

Easy transfer and charging

A standard USB Type-C port allows for the easy transfer of data to a memory stick, PC, or other compatible devices. This port is also used to charge the internal lithium-ion battery.

Dual-power supply for continual testing

The HI-98594 features a built-in lithium-ion battery that provides the primary charge for the instrument. A secondary power source, 1.5 AA alkaline batteries, ensures continued operation of the portable water meter when the lithium-ion battery runs out, with automatic switching for seamless measurement.

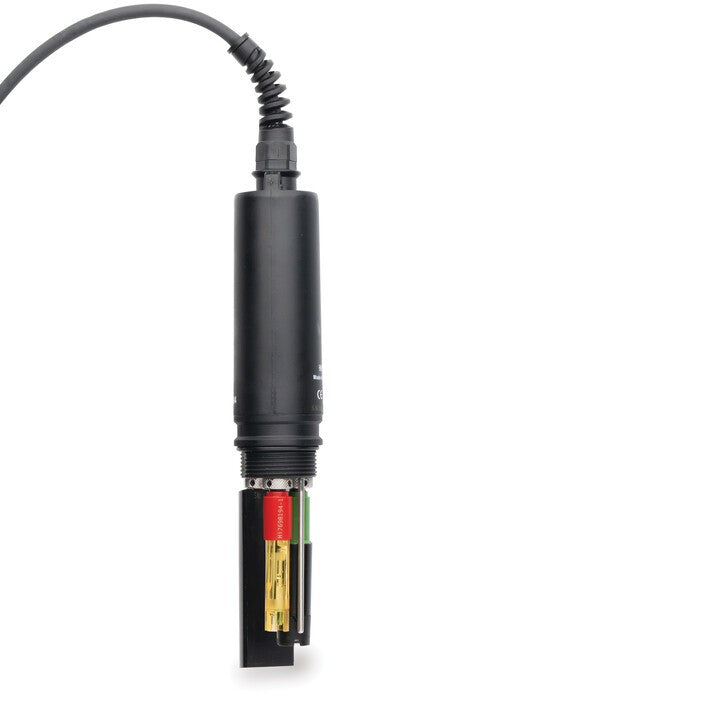

About the HI-7698594

This compact multi-sensor probe is fully waterproof and equipped with a protective shield, making it ideal for water measurements in difficult environments. The HI-7698594 includes the following colour-coded, automatically-recognised sensors as standard:

HI-7698194-1

Combined pH/ORP sensor

• PEI-body pH sensor with a glass tip
• Platinum Sensor for ORP
• Double junction reference with gel KCl electrolyte

HI-7698594-4

Combined EC/Turbidity sensor

• Four-electrode conductivity sensor
• Turbidity Sensor meets ISO 7027 standards
• Turbidity range from 0.0 to 1000 FNU

HI-7698194-1

Optical Dissolved Oxygen sensor

• No need for frequent calibrations
• Quick readings and great stability
• High precision at very low oxygen values
• Ideal for difficult applications

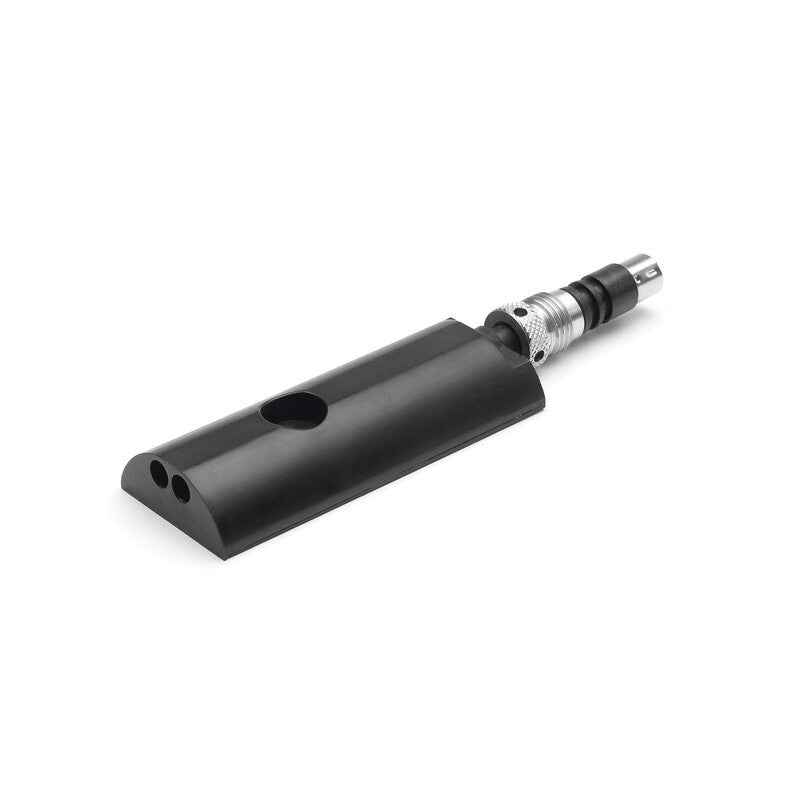

An optional Flow Cell (HI-7698297) is also available in combination with the HI-98594 and HI-7698594 to suit specific application requirements such as low-flow sampling in groundwater analysis.

Part of the HI-98XXX family

The HI-98594 water analysis meter is part of the HI-98XXX family of handheld meters for water testing. These meters cover a wide range of different parameters and include different options suitable for various applications, industry requirements and standards. Shop the full range here.

FAQs

What industries is the HI-98594 suitable for?

The HI-98594 is a versatile water meter that is suitable for the measurement of pH, ORP, DO, EC and Turbidity in a wide range of environments. Some of the most popular fields for this meter include analysis of seawater, groundwater and wastewater. In addition, the accuracy and practical design of this meter make it highly suitable for education and research, aquaculture and the environmental remediation and construction sectors. .

How big is the HI-98594?

The HI-98594 is a compact instrument designed for field testing. This handheld multimeter weighs 435g and has dimensions of 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”). The rugged carrying case that is included with this meter allows the HI-98594 and all accessories and solutions to be easily and securely carried on-site.

What is included with the HI-98594?

The HI-98594 is supplied with the HI-7698594 and all listed sensors, a protective probe shield, a probe maintenance kit, a long calibration beaker, quick calibration standard solutions, a zero oxygen solution set, a 0 FNU calibration solution, a 20 FNU calibration solution, a 200 FNU calibration solution, a protective rubber boot and a rugged carrying case. Quality certificates and a quick reference guide are also included, alongside a USB cable and 4x 1.5V AA alkaline batteries.
