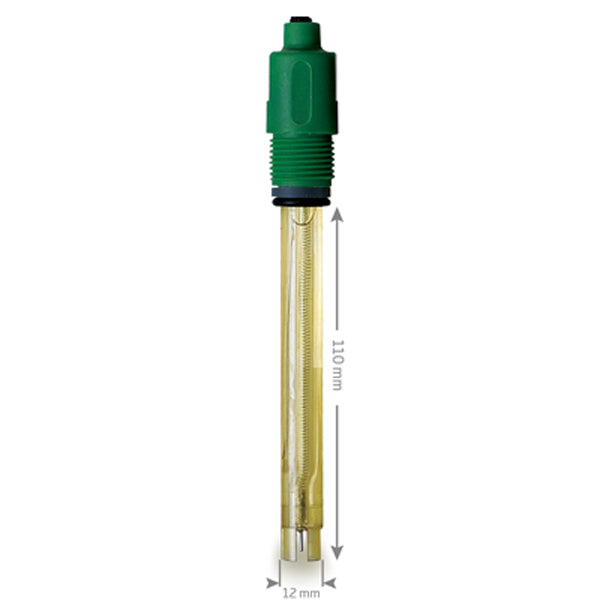

HI-3214p ORP electrode for general purpose, agriculture and disinfection
HI-3214p ORP electrode for general purpose, agriculture and disinfection
Prisen er ekskl. mva.
På lager
The HI-3214 is an electrode designed for use with the HI-981406 and HI-982401 swimming pool monitors. The electrode is constructed with a specially designed fibre salt-bridge making each particularly resistant to clogging in pools.
Couldn't load pickup availability
Beskrivelse
Beskrivelse
HI-3214p Spare electrode for general purpose, agriculture and disinfection
The HI-3214 is designed for use with swimming pool monitors listed below:
About the HI-982401
HI-982401 has been manufactured to serve as a monitor for swimming pools, spas and research where only the ORP needs to be checked and space or cost are major factors. Thanks to its compact size of 9 cm (3.3") diameter, HI-982401 with its electrode HI-3214P, can be mounted in confined spaces and right next to the vat or barrel containing the chemicals. The casing also incorporates a moulded eye so that it can be installed with a single fixing.
. . . and HI-981406
The HI-981406 has been specially designed for water treatment and swimming pool applications where both pH and ORP need to be monitored. Instead of sourcing two meters, users can now continuously measure both pH and ORP with HI-981406.
More about the electrode
The shielding around the spherical glass tip minimises breakage due to accidental bumping or dropping of the electrode.
Spesifikasjoner
Spesifikasjoner
| pH/ORP/DO/ISE/EC | ||
| Measurement Range | ORP: +/-2000mV | |
| Junction Type/Flow Rate | Cloth | |
| Type of Electrolyte | Gel | |
| Body Material | PEI | |
| Tip / Shape | platinum pin | |
| Matching Pin | No | |
| Max. Pressure | 3.0 Bar | |
| Temperature Operating Range | 0 to 80°C (32 to 176°F) - GP | |
| Outer Diameter | 12 mm | |
| Cable | coaxial; 2 m (6.6’) | |
| Connector Type | multi-pin BNC | |
| Amplifier | No |
