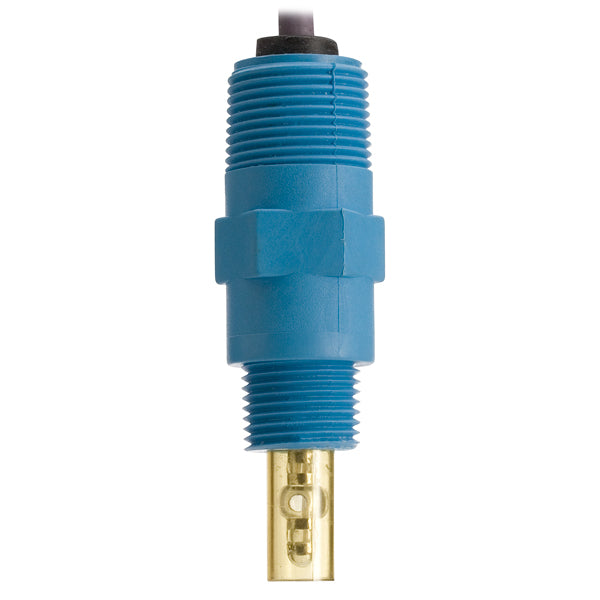

HI-3001D/5 Flow-through 4-ring conductivity probe for 6 BAR with platinum sensor
HI-3001D/5 Flow-through 4-ring conductivity probe for 6 BAR with platinum sensor
Prisen er ekskl. mva.
På lager
Couldn't load pickup availability
Beskrivelse
Beskrivelse
Flow-through 4-ring conductivity probe for 6 BAR with platinum sensor, NTC temp sensor and DIN connector, 5 m cable.
The four-ring probes measure conductivity with Platinum sensors. They come with standard ½ inch external thread on the front for flow-thru mounting and ¾ inch threads on the back for submersion of pipe mounting.
The protective cover is made of PEI and can be removed for quick maintenance. The probes can withstand temperatures up to 80°C (176°F) and 6 bars (87 psi) of pressure.
In addition, a NTC sensor for automatic temperature compensation.
Spesifikasjoner
Spesifikasjoner
| Body material | PEI and PVDF | |
| EC/TDS Temperature Compensation Range | automatic, 0 to 60°C with NTC sensor | |
| Maximum Pressure | 6 bar (87 psi) | |
| Overall Length | 89 mm (3.5”) | |
| Cable | 3 m (9.9’), 5 m (16.4’) and 10 m (32.8’) based on selection | |
| Connector Type | N/A (HI-3001), DIN (HI-3001D models) |
