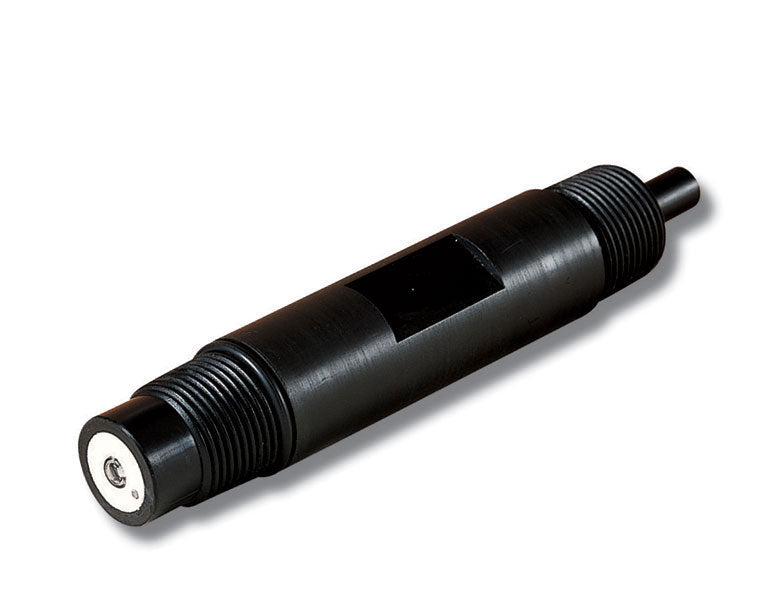

HI-6100405 General purpose process pH electrode
HI-6100405 General purpose process pH electrode
Prisen er ekskl. mva.
På lager
The amplified pH electrode is designed for industrial applications with features such as a PTFE junction, general purpose glass, and PVDF body. With its durable design, you can count on this electrode to stand up to your process environment.
Couldn't load pickup availability
Beskrivelse
Beskrivelse
General purpose process pH electrode. Amplified with matching pin, 5m cable and BNC connector
- Flat-tip pH electrode.
- General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
- Built for everyday, demanding use in industrial applications.
Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
General purpose glass formulation
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
PVDF body
PVDF offers characterised by high thermal stability and excellent chemical resistance.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
Spesifikasjoner
Spesifikasjoner
| Measurement Range | pH 0-13 | |
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Glass Type | GP -5 to 80°C | |
| Tip / Shape | Flat | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | No | |
| Cable | 5m | |
| Connector Type | BNC | |
| Amplifier | No |
