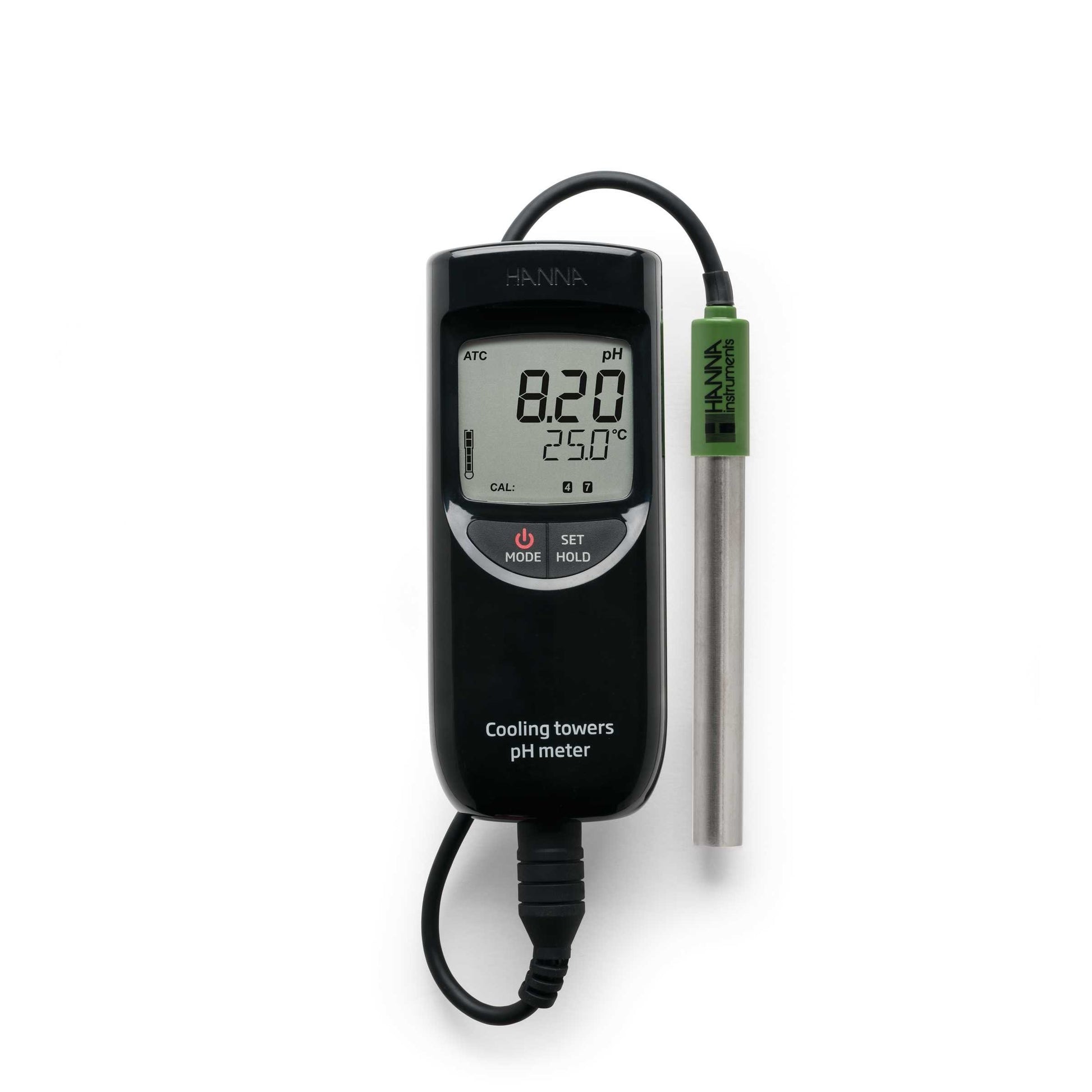

HI-99141 Portable Waterproof pH Meter for Boilers and Cooling Towers
HI-99141 Portable Waterproof pH Meter for Boilers and Cooling Towers
Prisen er ekskl. mva.
På lager
Hanna HI-99141 Portable Waterproof pH Meter is designed specifically for monitoring pH in boilers, cooling towers, and industrial water treatment systems. It delivers fast, accurate readings even in challenging conditions where temperature and chemical exposure can affect measurement stability.
Supplied with a durable electrode engineered for high-temperature and chemically treated water, the HI-99141 ensures reliable performance for maintenance, inspection, and process control.
Key Features
- Designed for boilers and cooling tower applications
- Durable electrode for harsh water conditions
- Automatic temperature compensation for accurate readings
- Two-point automatic calibration
- Waterproof (IP67) rugged housing
- Fast response and stable measurements
- Easy-to-use interface for field operation
Applications
- Boiler water monitoring
- Cooling tower systems
- Industrial water treatment
- Maintenance and service inspections
- Process control in industrial environments
What's Included
- HI-99141 portable pH meter
- Specialized pH electrode with temperature sensor
- Calibration buffer solutions
- Cleaning and storage solutions
- Protective carrying case
- Batteries
Measurement Method
The pH is measured using a glass electrode optimized for industrial water applications. The integrated temperature sensor provides automatic temperature compensation, ensuring accurate and reliable readings under varying conditions.
Why Choose HI-99141?
- Optimized for demanding industrial environments
- Reliable measurements in treated and high-temperature water
- Portable and durable for on-site testing
- Essential tool for maintaining system efficiency and safety
Couldn't load pickup availability
Beskrivelse
Beskrivelse
HI-99141 is a portable, microprocessor-based pH and temperature meter specifically designed for boiler water or cooling tower water measurements. It comes with a HI-729113 probe, a rugged double junction pH electrode with a flat pH sensor and titanium body.
The electrode has a peripheral Teflon® junction for maximum surface contact and the flat pH tip is easy to clean and prevents solids from collecting on the sensor. Chemicals used to minimise scale, corrosion and foaming require an optimum pH. Measuring and controlling water quality helps minimise these effects.
The HI-99141 pH meter is a portable, lightweight meter with two button operation that is simple to use. It is delivered with a rugged pH electrode protected by a titanium body that is perfect for the pH measurement of treated boiler, feed water and steam condensate.
A built-in temperature sensor allows simultaneous temperature compensated pH and temperature readings and an integral pH sensor pre-amplifier provides measurements impervious to noise and electrical interference.
Main features:
- Simultaneous pH and temperature measurements on a large dual-line LCD display
- Automatic pH calibration at one or two points within two memorised buffer sets (standard or NIST)
- Selectable temperature unit (°C)
- Electrode condition indicator
- mV of pH measurement for electrode check
- HI-729113 dedicated pH with integral temperature sensor
- Probe quick connect system
- Battery life indication and low battery detection
- Keystroke confirmation tone
- Auto-off function
- Waterproof casing IP67
Each meter is supplied with:
- HI-729113 pre-amplified pH probe with built-in temperature sensor and matching pin, DIN Connector with 1m cable
- pH 4.01 and 7.01 buffer sachet
- HI-700601 Electrode cleaning solution (2 sachets)
- 100 ml beaker
- Alkaline batteries: 1.5V AAA x 3
- Rugged carrying case
- Calibration certificate of meter
- Calibration certificate of probe
- Instruction manual
Available to buy separately:
Protective rubber boot
- HI-710028 Orange
- HI-710029 Blue
- HI-710030 Green
Spesifikasjoner
Spesifikasjoner
| pH Range | -2.00 to 16.00 pH | |
| Temperature Range | -5.0 to 105.0°C | |
| mV | ±825 mV (pH-mV) | |
| pH Resolution | 0.01 pH | |
| Temperature Resolution | 0.1°C | |
| mV Resolution | 1 mV | |
| pH Accuracy @ 30°C | ±0.02 pH | |
| Temperature Accuracy @ 20°C | ±0.5°C | |
| mV Accuracy @ 20°C | ±1 mV (pH-mV) | |
| pH Electrode | HI-729113 pre-amplified pH titanium-bodied probe with built-in temperature sensor, with Quick Connect DIN connector and 1 m (3.3') cable (included); please note: HI-729113 is limited to be used from 0 to 13 pH and from 0 to 80°C | |
| Battery Type / Life | 3 x 1.5V AAA / approx. 1400 hours of continuous use | |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% | |
| Dimensions | 154 x 63 x 30 mm | |
| Weight | 196 g | |
| Case Protection Rating | IP67 |
