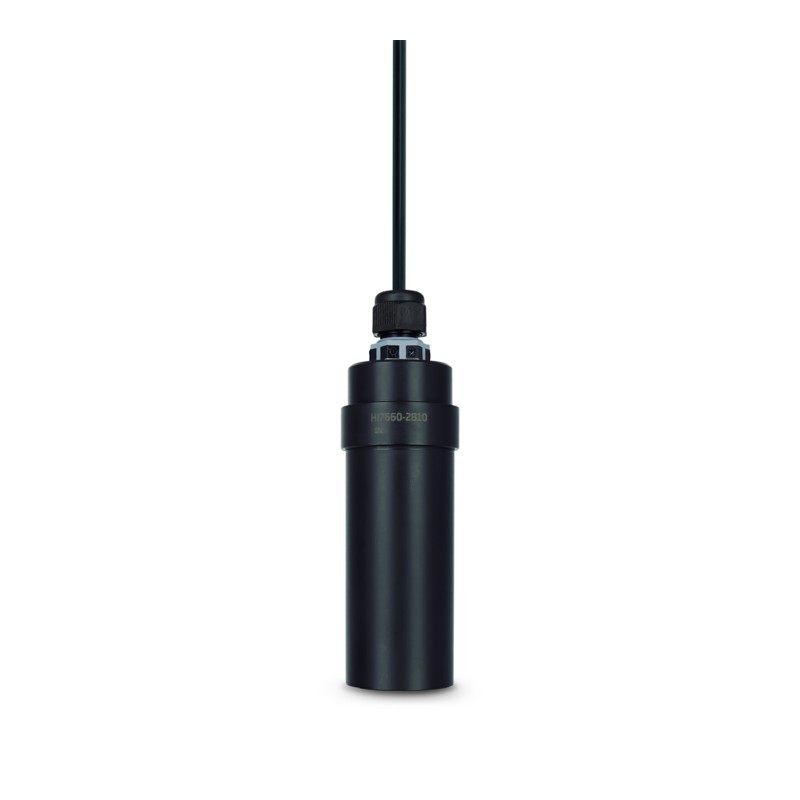

HI-7660-2805 Low Range Turbidity Probe with 5m Cable
HI-7660-2805 Low Range Turbidity Probe with 5m Cable
Hinta ei sisällä ALV:tä.
Varastossa
HI-7660 is a nephelometric turbidity probe for low turbidity values up to 400 FNU, designed for use with Hanna’s HI-510 and HI-520 Process Controllers. An integral temperature sensor measures water temperature during turbidity readings, adjusting the probe signal as required. This is the version of the HI-7660 with a 5m cable. The HI-7660 probe should be accompanied by the HI-7676602 flow cell. Using a flow cell will help to eliminate ambient light effects and achieve consistent sample pressure for accuracy in testing for water treatment, drinking water and water quality applications.
Couldn't load pickup availability
Kuvaus
Kuvaus
Tekniset tiedot
Tekniset tiedot
| Turbidity | ||
| Range | 0.000 to 4.000 FNU; 0.00 to 40.00 FNU; 0.0 to 400.0 FNU | |
| Resolution | 0.001 FNU; 0.01 FNU; 0.1 FNU | |
| Accuracy | 0.000 to 4.000 FNU 0.05 ± 2% reading; 0.00 to 40.00 FNU 0.3 ± 2% reading; 0.0 to 400.0 FNU 2.0 ± 2% reading | |
| Calibration | Factory calibration (default); Single solution (determine slope); Two points (determine slope and offset) | |
| Calibration time-out | Off (default) ; 1 to 99 days | |
| Additional Specifications | ||
| Averaging samples | 1 to 60 samples (default, 1 sample) | |
| Temperature Compensation | Automatic, 0.0 to 50.0 °C (32 to 122 °F) | |
| Temperature Source | Automatic (from probe) | |
| Operating temperature | −5 to 50 °C (23 to 122 °F) | |
| Repeatability | 2% | |
| Protocols | MODBUS RTU | |
| Sensor | ||
| Light Source | Infrared LED | |
| Light Detector | Photodiode for turbidity measuring | |
| Body | ||
| Type | PVC | |
| Length | 115 mm (without cable gland) | |
| Diameter | 39.5 mm | |
| Probe Weight | 190 g | |
| Cable Weight | 10 m - 480 g 5 m - 240 g | |
| Total Weight | Probe with 10 m cable - 670 g Probe with 5 m cable - 430 g | |
| Operating pressure | 0 to 6 bar @ 25 °C (77 °F) 0 to 3 bar @ 50 °C (122 °F) | |
| Protection Rating | IP68 | |
| Cable length available | 02, 05, 10 Metres - fixed cable length |
