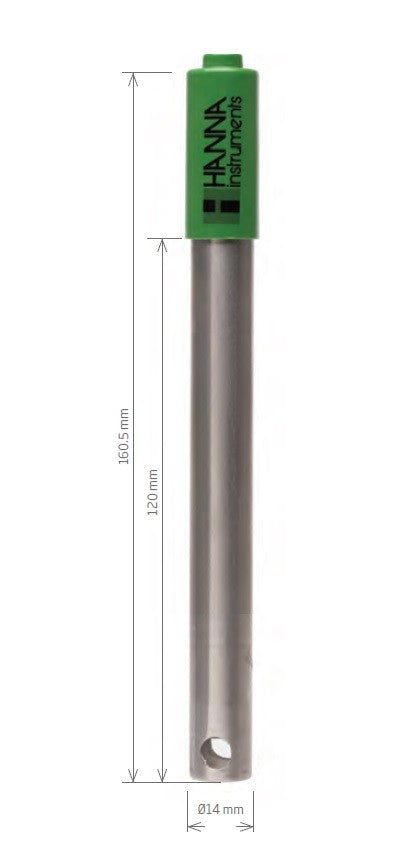

Plating bath Titanium Body pH Electrode with Quick Connect Din Connector
Couldn't load pickup availability
Kuvaus
Kuvaus
Plating Baths can vary from acid to neutral to alkaline with many different chemical formulations used. The common necessity is the fast and accurate measurement of pH to ensure that additives and chemicals are working properly to provide even and consistent plating.
The titanium electrode body acts like a Faraday cage, and allows stable readings even in samples where strong electrical fields are involved.
Moreover, a built-in temperature sensor allows simultaneous temperature compensated pH and temperature readings and a pH sensor preamplifier provides measurements impervious to noise and electrical interferences.
Tekniset tiedot
Tekniset tiedot
| Description | pH Electrode | |
| Reference | Double Ag/AgCl | |
| Junction | PTFE | |
| Electrolyte | Polymer | |
| Max Pressure | 3 bar | |
| Range | pH 0 to 13 | |
| Recommended Operating Temp | 0 to 80˚C | |
| Glass Type | GP (General Purpose) | |
| Tip Shape | Flat | |
| Temperature Sensor | yes | |
| Amplifier | Yes | |
| Body Material | Titanium body working as a matching pin | |
| Cable | 7 pole: 1m | |
| Recommended Use | Plating Baths | |
| Connection | Quick Connect DIN* | |
| *Recommended for use with: | HI-99131 pH Meter |
