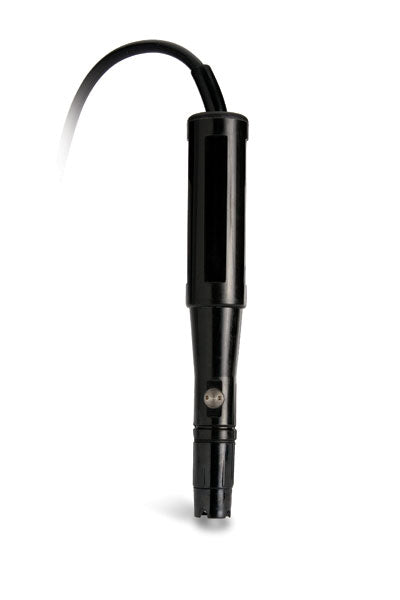

HI-76407/10 Polarographic Dissolved Oxygen Probe with 10m Cable
HI-76407/10 Polarographic Dissolved Oxygen Probe with 10m Cable
Hinta ei sisällä ALV:tä.
Varastossa
The HI-76407/10 is a standard polarographic dissolved oxygen probe with a 10 metre cable for Hanna benchtop and portable dissolved oxygen meters. It contains a platinum cathode and silver anode and is for use with HI-76407A/P PTFE membrane caps. The probe’s tapered design makes it ideal for BOD measurements.
Couldn't load pickup availability
Kuvaus
Kuvaus
The HI-76407/10 is a Polarographic dissolved oxygen probe with internal temperature sensor and a 10m cable.
Hanna Dissolved Oxygen probes are extremely rugged and perfect for laboratory and field applications.
Calibration is fast and simple, and measurements are temperature compensated. The sensitive PTFE (PolyTetraFluoro-Ethylene) membrane can be changed in a few seconds.
The HI-76407/10 is a standard polarographic dissolved oxygen probe for HANNA benchtop and portable dissolved oxygen meters. The probe is made of durable ABS plastic and contains an integrated temperature sensor for temperature compensated measurements. It is compatible with our HI-76407A/P PTFE membrane caps. Each membrane separates the probe’s platinum cathode and silver anode from the water sample being measured. Oxygen diffuses across the membrane and interacts with the polarographic system to produce a current proportional to oxygen concentration. Each cap is easily filled with HI-7041 electrolyte and screwed onto the probe.
Key features:
- Polarographic Sensor
- Tapered
- Shielded, waterproof cable
- Cable protective sleeve
- Linearised and accurate thermistor temperature sensor protected behind a stainless steel cover
- Silver wire anode element
- Glass encapsulated platinum cathode
- Screw cap membrane that holds potassium chloride electrolyte solution (HI-7041S)
- Thin, permeable PTFE membrane isolates the sensor elements from the testing solution, but allows oxygen to enter (HI-76407A/P)
Tekniset tiedot
Tekniset tiedot
| Cable length | 10 metres | |
| Shielded, waterproof cable | Yes | |
| Protective sleeve | Yes | |
| PEI probe | Best field protection | |
| Thermistor temperature sensor | Linearised and accurate and protected behind a stainless steel cover | |
| Anode | Silver wire element | |
| Cathode | Glass encapsulated Platinum cathode | |
| Membrane | Screw cap membrane that holds potassium chloride electrolyte solution (HI-7041S) | |
| PTFE membrane | Thin, permeable PTFE membrane isolated the sensor elements from the testing solution, but allows oxygen to enter (HI-76407A/P) | |
| Hole for solution cycling | Yes | |
| Protective sleeve | Yes – ideal for field applications | |
| Replacement membranes | Order HI-76407A/P x 5 ready-to-use replacements | |
| Electrolyte Solutions | HI-7041 Refilling electrolyte solution (6 x 30ml) HI-7041S Refilling electrolyte solution (30ml) HI-7041M Refilling electrolyte (230ml) HI-7041L Refilling electrolyte solution (500ml) |
