HI-6100205 Acid sample with fluoride ion process pH electrode
HI-6100205 Acid sample with fluoride ion process pH electrode
Hinta ei sisällä ALV:tä.
Varastossa

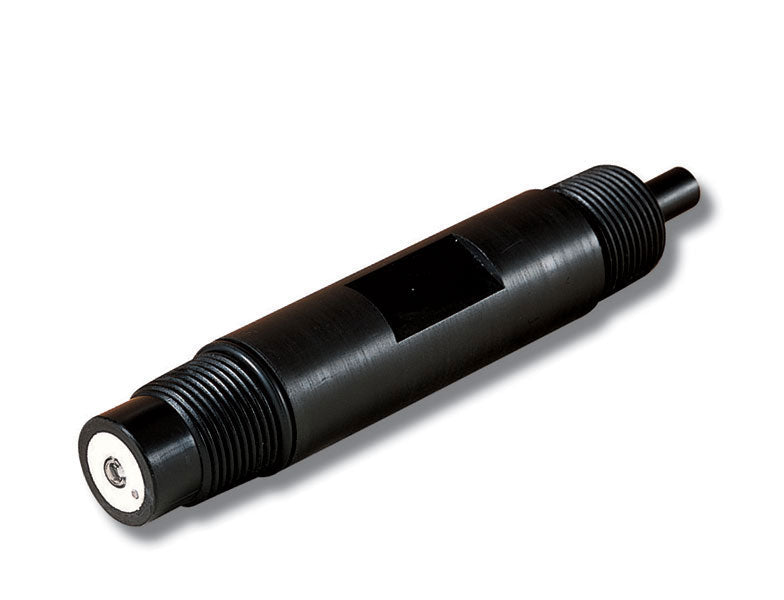

The amplified pH electrode is designed for industrial acid samples with fluoride ions with features such as a PTFE junction, fluoride-resistant glass, and PVDF body. With its durable design, you can count on this electrode to stand up to your process environment.
Couldn't load pickup availability
Kuvaus
Kuvaus
Acid sample with flouride ion process pH electrode. Amplified with matching pin, 5m cable and BNC connector.
- Flat-tip pH electrode
- HF resistant glass is designed for use in aggressive applications that have fluoride ions for extended life
- Built for everyday, demanding use in industrial applications
Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Hydrofluoric resistant glass formulation
HF resistant glass is designed for use in aggressive applications that have fluoride ions for extended life.
PVDF body
PVDF offers characterised by high thermal stability and excellent chemical resistance.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
Tekniset tiedot
Tekniset tiedot
| Junction / Flow Rate | Double, PTFE | |
| Measurement Range | pH: 0-10 | |
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Glass Type | HF (-5 to 60°C) | |
| Tip / Shape | Flat | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | No | |
| Cable | 5M | |
| Connector type | BNC | |
| Amplifier | No |
