HI-97115 MARINE MASTER VANDTÆT TRÅDLØS MULTIPARAMETERFOTOMETER
HI-97115 MARINE MASTER VANDTÆT TRÅDLØS MULTIPARAMETERFOTOMETER
Prisen er eksklusive moms.
På lager
Et kompakt og alsidigt maritimt multiparameterfotometer designet til præcist at bestemme de otte anførte parametre. Det er velegnet til brug i felten eller i laboratorie-/bordmiljøer.
Afhentningstilgængelighed kunne ikke indlæses
Beskrivelse
Beskrivelse

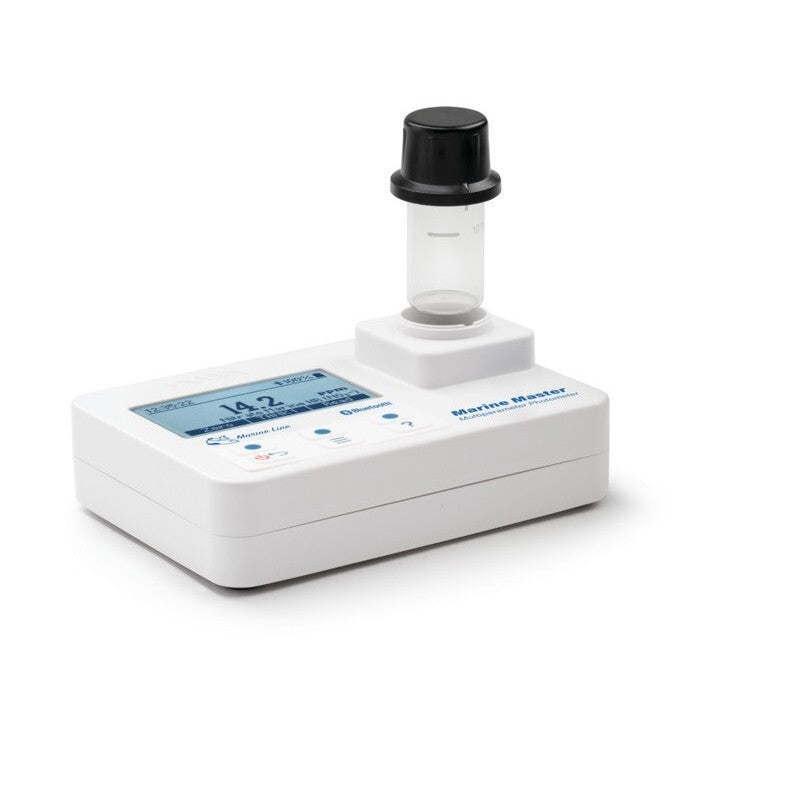

HI-97115 Marine Master Waterproof Wireless Multiparameter Photometer
For use in aquariums and marine biology applications, this meter measures pH, Alkalinity, Ammonia, Calcium, Magnesium, Nitrate Low Range, Nitrite Ultra Low Range, and Phosphate Ultra Low Range.
A compact and versatile Marine multiparameter photometer designed to accurately determine the eight parameters listed. It is suitable for use in the field or bench environments.
The HI-97115 can be used as a stand-alone photometer or can be connected to the Hanna Lab App with a compatible smart device via the integrated Bluetooth module. When connected, Hanna Lab App functions include measurement with the ability to add notes, data logging with extended storage capacity, data sharing, and the ability to create and save method groups.
Please download the Safety Datasheet(s) which provide more detail on the reagents before use; click on the link in the “safety data sheets” paragraph below.

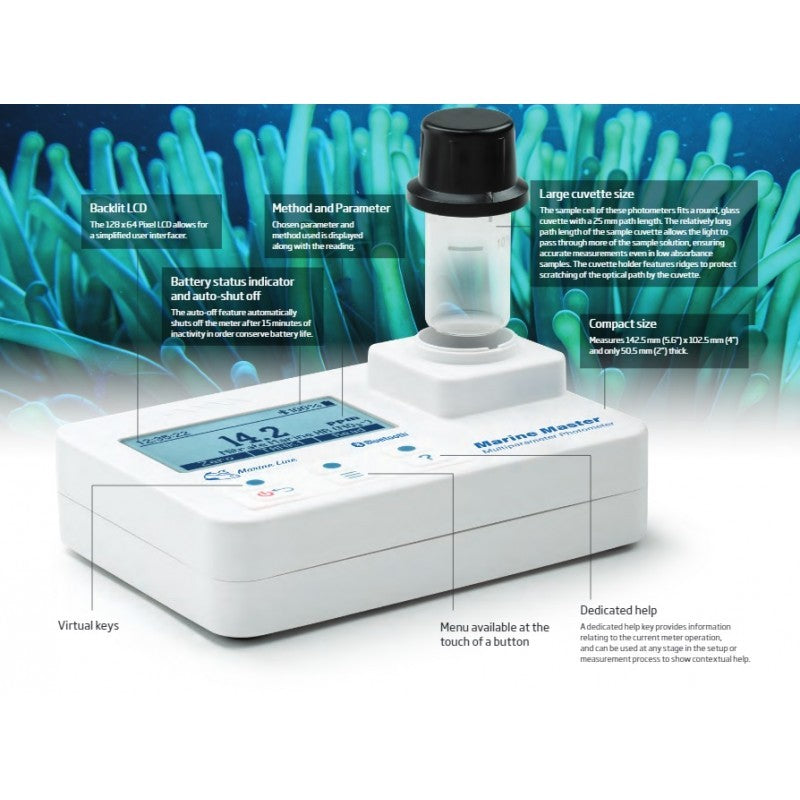

Key features
- Backlit LCD – The 128 x 64 pixel LCD allows for a simplified user interface
- Battery status indicator and auto-shut off – The auto-off feature automatically shuts off the meter after 15 minutes of inactivity in order to conserve battery life
- Method and parameter – Chosen parameter and method used are displaying along with the reading
- Large cuvette size – The sample cell fits a round glass cuvette with a 25mm path length. This allows the light to pass through more of the sample ensuring accurate measurements even in low absorbance samples. The cuvette holder features ridges to protect scratching of the optical path by the cuvette.
- Virtual keys
- Compact size – Measures 142.5mm x 102.5mm and 50.5mm thick.
- Menu available at the touch of a button
- Dedicated help key – this provides information relating to the current meter operation, and can be used at any stage in the setup or measurement process to show contextual help.
Hanna Lab App
When the photometer is paired with a compatible smart device, it adds an enhanced user experience to the photometer. You can name samples and add notes, view logged detail such as date and time, share logged data in various formats, and control meter settings.
More key features:
- Waterproof and floats – IP67 meter design
- Option to select measurement location for better tracking consistency
- CAL CheckTM validation and calibration – step-by-step screen guides through the validation process and user calibration. GLP data displays the last calibration date.
- Backlit LCD and on-screen help
- Built-in reaction timer that ensures consistency between tests
- On-screen tutorial mode with animations – this includes steps required for sample preparation, the required reagents and quantities. Enabled via the setup menu.
- Auto-data logging features to easily record water testing results – up to 200 individual measurements (data points). When the log is full, the instruments rewrites the oldest data point
Positive locking system ensures cuvettes are placed into the holder in the same position every time

HI-97115 is supplied with sample cuvette (2pcs), sample cuvette caps (2pcs), 1.5V AA alkaline batteries (3 pcs), instrument quality certificate, and quick reference guide.
Cal Check standards and reagents are sold separately.
Safety Data Sheets
Access safety data sheets online here. When using any form of chemical, it is important you download the relevant safety datasheet and make yourself aware of any precautions you should take when handling the chemical. You can access our library of safety datasheets and download a copy by following the link below.
Please note that the '-' in HI- products should be removed from all searches to find the correct information.
Specifikationer
Specifikationer
| Alkalinitet, marint område | 0,0 til 20,0 dKH 0 til 357 ppm (som CaCo3 ) | |
| Alkalinitet, marin opløsning | 0,1 dkH | |
| Alkalinitet, marin nøjagtighed | ±0,3 dKH ±5 % af aflæsning ved 25 °C ±5 ppm ±5 % af aflæsning ved 25 °C | |
| Alkalinitet, marin metode | Kolorimetrisk metode - Reaktionen forårsager udvikling af et karakteristisk farvespektrum fra gul til grønlig blå | |
| Ammoniak, marint område | 0,00 til 2,50 ppm (som NH₃) | |
| Ammoniak, marin opløsning | 0,01 ppm | |
| Ammoniak, marin nøjagtighed | ±0,05 ppm ±5% af aflæsningen ved 25°C | |
| Ammoniak, marin metode | Tilpasning af salicylatmetoden | |
| Ammoniak, Marine LED | 610 nm | |
| Kalcium, marineområde | 200 til 600 ppm | |
| Calcium, marin opløsning | 1 ppm | |
| Kalcium, marin nøjagtighed | ±6 % af aflæsningen ved 25 °C | |
| Calcium, marin metode | Tilpasning af Zincon-metoden | |
| LED | 610nm | |
| Marint magnesium | ||
| Rækkevidde | 1000 til 1800 ppm (som Mg2 + ) | |
| Opløsning | 5 ppm | |
| Nøjagtighed | ±5% af aflæsningen ved 25 °C | |
| Metode | Tilpasning af den kolorimetriske EDTA-metode ved hjælp af calmagitindikator | |
| LED | 610 nm | |
| Nitratområde | 0,00 til 5,00 ppm (som No3¯) 0,0 til 75,0 ppm (som No3¯) | |
| Nitratopløsning | 0,01 ppm | |
| Nitratnøjagtighed | ±0,25 ppm ±2% af aflæsningen ved 25°C | |
| Nitratmetode | Zinkreduktionsmetode | |
| LED | 525nm | |
| Nitrit, Marine ULR-serie | 0 til 200 ppb (som No2¯-N) | |
| Nitrit, marin ULR-opløsning | 1 ppb | |
| Nitrit, Marine ULR-nøjagtighed | ±10 ppb ±4 % af aflæsningen ved 25 °C | |
| Nitrit, marin ULR-metode | Tilpasning af EPA's diazoteringsmetode 354.1 - Reaktionen mellem nitrit og reagenset forårsager en lyserød farvetone i prøven. | |
| LED | 525nm | |
| Marint pH-område | 6,3 til 8,6 pH | |
| pH-opløsning | 0,1 pH | |
| pH-nøjagtighed | ±0,2 pH-værdi for aflæsningen ved 25°C | |
| pH-metode | Kolorimetrisk tilpasning af phenolrødmetoden | |
| LED | 525nm | |
| Fosfat, ULR-område | 0,00 til 0,90 ppm | |
| Fosfat, ULR-opløsning | 0,01 ppm | |
| Fosfat, ULR-nøjagtighed | ±0,02 ppm ±5 % af aflæsningen ved 25 °C | |
| Fosfat, ULR-metode | Tilpasning af standardmetoder til undersøgelse af vand og spildevand, 20. udgave, ascorbinsyremetoden - Reaktionen mellem fosfat og reagenset forårsager en blå farvetone i prøven. | |
| LED | 610nm | |
| Lyskilde | lysdiode (LED) | |
| Lysdetektor | Silicium fotocelle | |
| Båndpasfilter båndbredde | 8 nm | |
| Båndpasfilterets bølgelængdenøjagtighed | ±1,0 nm | |
| Logføring | 200 aflæsninger | |
| Strømforsyning | 1,5 V AA Alkaline (3 stk.) | |
| Batterilevetid | > 800 målinger (uden baggrundsbelysning) | |
| Automatisk slukning | Efter 15 minutters inaktivitet | |
| Miljø | 0 til 50 °C (32 til 122 °F); 0 til 100 % RF, ikke-servicebar | |
| Dimensioner | 142,5 x 102,5 x 50,5 mm (5,6 x 4,0 x 2,0") | |
| Vægt | 380 g (13,4 oz.); med batterier | |
| Hus | IP67-klassificeret, flyder | |
| Garanti | 2 år |
| Reagenser, CAL-kontrolstandarder og tilbehør - køb separat: |
| Reagenssæt | |
| HI-758‑26 | Marint kalciumreagens - 25 tests |
| HI-764‑25 | Marine nitrit ULR-reagens - 25 tests |
| HI-772‑26 | Marint alkalinitetsreagens - 25 tests |
| HI-774‑25 | Marine Phosphate ULR Reagent - 25 tests |
| HI-780‑25 | Marine pH-reagens - cirka 100 tests |
| HI-781‑25 | Marine Nitrat LR Reagens - 25 tests |
| HI-782‑25 | Marine Nitrat HR Reagens - 25 tests |
| HI-783-25 | Marine magnesiumreagenser - 25 tests |
| HI-784-25 | Marint ammoniakreagens - 25 tests |
| HI-97105‑11 | CAL Check™-standarder for HI-97105 & HI-97115 - kuvettesæt |
| Andet tilbehør | |
| HI-70436M | Deioniseret vand (230 ml) |
| HI-7101419 | Blå bæretaske til HI-97115 |
| HI-731318 | Klud til aftørring af kuvetter (4 stk.) |
| HI-731360 | Glaskuvette med låg (2 stk.) |
| HI-740270 | 10 ml sprøjte med Luer Lock (1 stk.) |
| HI-740271 | Filterholder med Luer Lock (1 stk.) |
| HI-740272 | 16 gauge stump nål (6 stk.) |
| HI-740273 | Marine Nitrat LR målesæt (1 stk.) |
| HI-740228 | Filterskive (25 stk.) |
| HI-93703‑50 | Kuvetterengøringsopløsning (230 ml) |
Sikkerhedsdatablad
Sikkerhedsdatablad
Du kan finde sikkerhedsdatablade for vores produkter her
Manualer
Manualer
