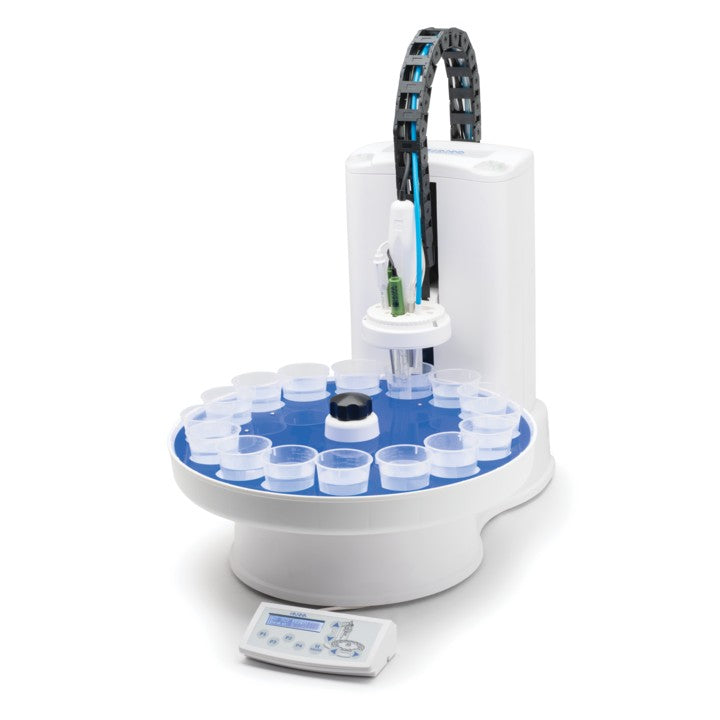

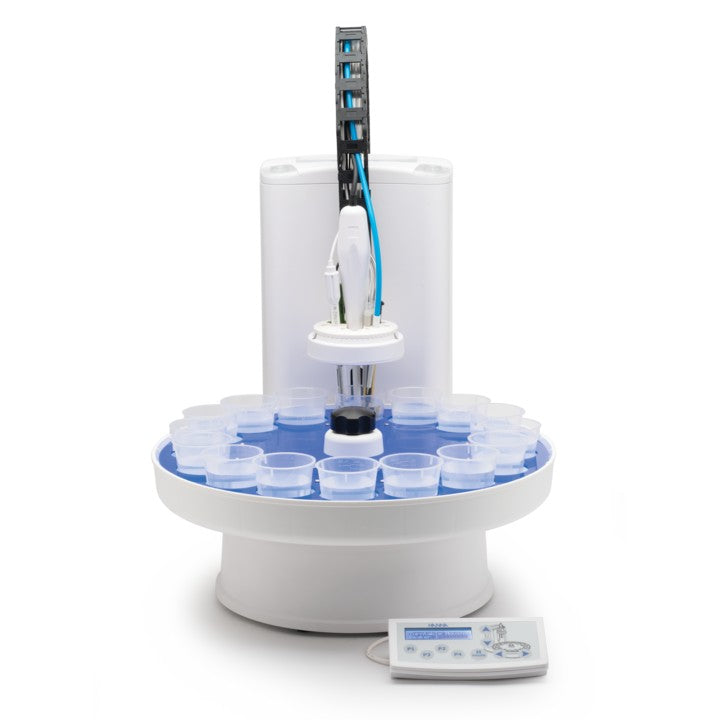

HI-922-200 Autosampler with 18 Beaker Tray and no pumps

HI-922-200 Autosampler with 18 Beaker Tray and no pumps

The HI-922 Autosampler interfaces directly with the HI-932 to access titration methods. Once a titration method is established, the user can fully customise the automation sequence of their samples for this method. Sample names and size can be customised or auto-filled with preset values.

One beaker can be designated for storage purposes before and after titration sequences; up to three beakers per tray can be designated for an electrode rinse sequence, allowing for sufficient removal of solutions that are hard to clean between each sample titration.

During each sample titration, the real-time progress is shown on the HI-932 display. Finished sample results and graphs can be accessed during and after the titrations have finished. Once the Autosampler sequence is complete, two reports are available for review: a sequence report featuring a table outlining each sample name, beaker position, sample size, and result for the tray, and a detailed titration report for each individual sample, including the graph of the titration data.

16 or 18 Sample Tray

The HI-922 can automate samples using a 16-sample tray or an 18-sample tray. The 16-sample tray holds 150 mL beakers; the 18-sample tray holds 100 mL beakers. The Autosampler trays are composed of chemically resistant materials and are removable to allow for easy handling. The dishwasher safe trays provide a quick and simple way for users to clean regularly.

Use with the HI-932 Automatic Titration System

Flexible, accurate detection of the titration endpoint with HI-932 potentiometric titrator. Real-time progress of the sequence and results shown on the HI-932 titrator screen. Titrator sold separately.

Built-in Magnetic Stirrer

A magnetic stirrer comes built-in with each Autosampler tray. Users simply need to add a small magnetic stir bar to each beaker to ensure homogeneity during titrations. An optional overhead propeller stirrer can also be installed for use instead of the built-in stirrer. The HI-922 allows users to easily adjust the stirring speed of both the built-in and overhead stirrers for optimal use.

Built-in RFID

The HI-922 sample trays feature a built-in RFID reader that can communicate the tray size and serial number of each tray. Users can have multiple trays, each designated to a specific set of samples. The RFID reader can ensure that the appropriate tray is used each time.

Absolute Encoder

The Autosampler consistently tracks the tray position without the need to “home” or calibrate.

Barcode Reader

A USB-compatible barcode reader can be used to associate names with each sample for improved organisation of data.

Optical IR Beaker Detection

An optical IR beam can detect the presence or absence of beakers within the sample tray. Users can dictate the Autosampler action if a beaker is missing from the tray during a titration sequence. If a beaker is detected as missing, the HI-922 can skip over the sample or stop the titration sequence.

Versatile Electrode Holder

The durable electrode holder can accommodate three 12 mm electrodes, a temperature sensor, one aspiration tube, and five multipurpose tubes. The multipurpose tubes can be utilised for actions such as reagent addition or burette dosing.

Electrode Rinse Feature

Up to 3 beakers per tray can be designated for electrode dip/spray rinses.

Sample Levelling Feature

Automatic levelling for fast preparation of volumetric samples.

Waste Removal Feature

Aspirate completed samples into a waste container.

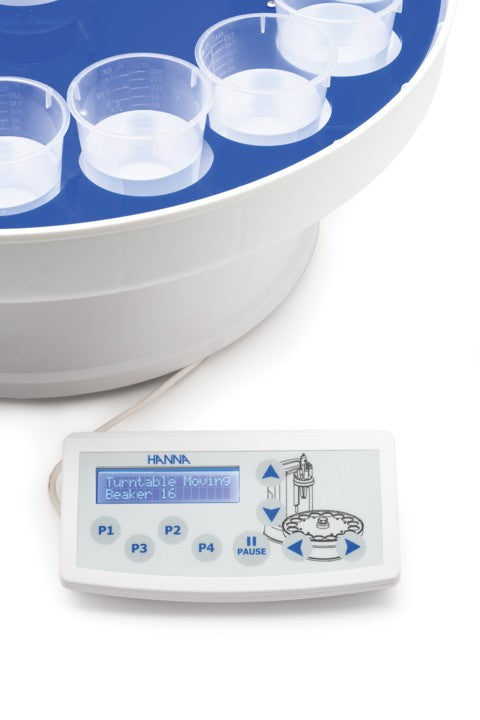

Control Panel

The included control panel features multiple buttons to allow for manual operation of the Autosampler tray, electrode holder, and any auxiliary pumps. A two-line backlit display on the handheld panel clearly displays status information. Manual control with the control panel is desirable for calibration, sample preparation, and method optimisation.

Peristaltic and Membrane Pumps

• Up to three peristaltic pumps can be added at any time • User replaceable pump systems • Peristaltic pumps:

• Uses high performance plastic that is engineered to be chemically resistant and have long service life.
• Reagent addition, sample levelling, waste removal
• Greater than 200 mL/min flow

• Membrane pumps:

• Simple plug connection for tubing
• Greater than 400 mL/min flow

Users can add up to three peristaltic pumps or one membrane pump at any time with the user-replaceable pump systems on the HI-922. The peristaltic pumps use high performance plastic that is engineered to be chemically resistant with a long service life.

These pumps have a flow greater than 200 mL/min and can be utilised for reagent addition, sample levelling, and waste removal. The membrane pump is a simple plug connection for tubing that has a flow greater than 400 mL/min.

Status indicator lights

Highly visible status lights are located on both sides of the Autosampler. These lights correspond to the status indicator on the HI-932 display and can easily be seen from far away. The lights double as a safety feature, as pressing them at any time will automatically stop the current titration sequence.

• Steady green: Idle, ready to start
• Flashing green: Titration sequence running

• Flashing yellow: Titration sequence paused

• Steady Red: Error or emergency stopped, or initialising during power on
• Flashing Red: Error during sequence running or manual operation

RFID recognition

Sample trays are automatically detected and identified when placed on the Autosampler.

Digital balance compatibility

Sample weights are communicated when connected to a digital balance.

Speedy sample entry

Sample names can be automatically incremented for speedy sample identification.

Electrode Holder Slots		3 x 12mm electrodes
Temperature Sensor		HI-7662-A (included)
Stirrers		Built-in magnetic stirrer
Peristaltic pumps		Up to 3 can be installed
Membrane Pump for cleaning		Installs in slot #4
Trays		16 beakers x 150mL (HI-920-11660)
Beakers		ASTM Short-form glass beakers
Control Panel		Buttons for manual operation of tray and titration head
Barcode reader		Compatible with USB barcode readers. Used to add sample names
Report storage		Up to 40 trays of samples – 720 reports for 18-beaker tray
Choose your AutosamplerConfiguration: HI-922-XYZ		X = 1 - 16 sample tray 2 - 18 sample trayY = 0 - No peristaltic pump 1 - One peristaltic pump 2 - Two peristaltic pumps 3 - Three peristaltic pumpsZ = 0 - No membrane pump
