HI-98194 Multiparameter pH/ORP/EC/DO Waterproof Meter
HI-98194 Multiparameter pH/ORP/EC/DO Waterproof Meter
Pris exklusive moms.
Hurry up, only 3 items left in stock.
The HI-98194 measures 12 different water quality parameters and comes with different cable lenght.
Couldn't load pickup availability
Description
Description

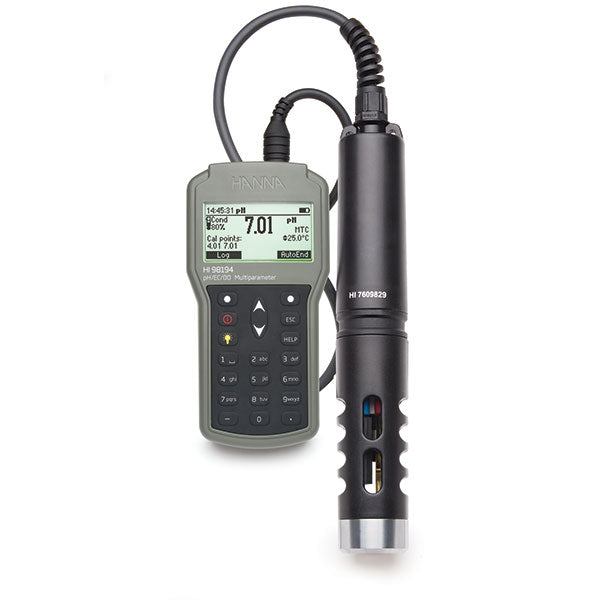

HI-98194 provides multiparameter measurement in a compact and rugged IP67 waterproof enclosure. Ideal for demanding application, this meter features our rugged, quick connect multi-function probe with field replaceable sensors. The HI-98194 measures pH/mV, ORP, Conductivity, TDS, Resistivity, Salinity, Seawater, Dissolved Oxygen, Atmospheric Pressure and Temperature.
Also available in 10m, 20m and 40m cables. See table below for details. Prices will vary.
A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows easy, intuitive operation in a choice of languages.
HI-98194 allows users to store up to 45,000 continuous or log-on demand samples with logging intervals from one second to three hours. Logged data can be later transferred to a PC with the HI-920015 micro USB cable and Hanna software.
Comprehensive GLP data includes data from the last five calibrations. The contextual Help Menu can be accessed to obtain on-screen information and assistance about each feature at the touch of a button.
The HI-7698194 probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.
HI-98194 provides multi-parameter measurement in a compact and rugged IP67 waterproof enclosure. Ideal for demanding application, this meter features our rugged, quick connect multi-function probe with field replaceable sensors.
A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows easy, intuitive operation in a choice of languages.
HI-98194 allows users to store up to 45,000 continuous or log-on demand samples with logging intervals from one second to three hours. Logged data can be later transferred to a PC with the HI-920015 micro USB cable and Hanna software.
Comprehensive GLP data includes data from the last five calibrations. The contextual Help Menu can be accessed to obtain on-screen information and assistance about each feature at the touch of a button.
The HI-7698194 probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.
Key features
- IP67 rated waterproof, rugged enclosure for meter, IP68 for probe
- Colour coded, field replaceable sensors
- Auto sensor recognition
- Automatic logging of up to 45,000 samples
- Store measurement data at the press of a button
- On-screen context specific help is readily available at the press of a button
- PC connectivity via opto-isolated micro-USB with Hanna software
- Up to 360 hours of battery life, powered by (4) 1.5Vbatteries
pH specific features
-
- Up to three point calibration with five standard buffers and one custom buffer available
EC/TDS/Resistivity specific features
-
-
- Single point calibration from six standards (84?S/cm, 1413 ?S/cm, 5.00 mS/cm, 12.88 mS/cm, 80 mS/cm, 111.8 mS/cm)
- Automatic temperature compensation configurable temperature coefficient range from 0.00 to 6.00%/°C
- Choice of reference temperatures at 20 or 25°C
- Absolute conductivity can be displayed along with the temperature compensated value
- Auto ranging
- Practical Salinity Scale (PSU)based on conductivity calibration
-
Dissolved Oxygen specific features
-
-
- Display units in % saturation of mg/L (ppm)
- Salinity compensation for concentration
- Pressure compensation for concentration
- Built-in barometer with user-selectable units (mmHg, inHg, atm, psi, kPa, mbar)
- Temperature compensation
- Automatic polarisation of probe at startup
- Ready to use HDPE pre-tensioned membrane caps are easy to replace
-
Colour Coded, Field Replaceable Sensors
-
-
- HI-7698194-0 Double Ceramic Junction pH Sensor

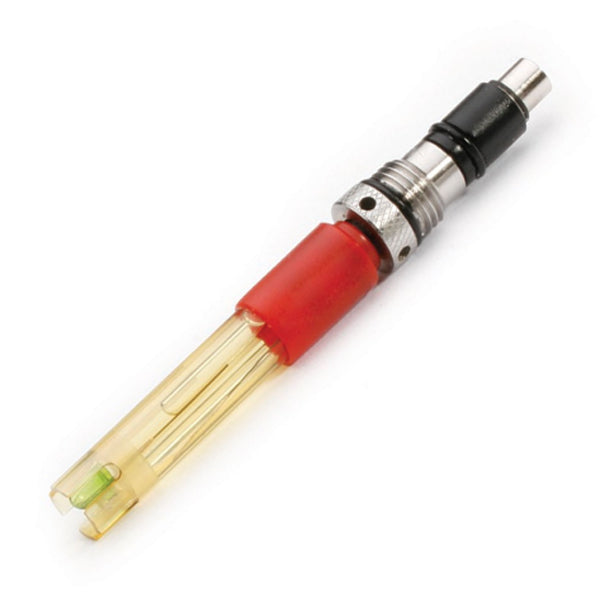

- HI-7698194-1 pH & platinum ORP Sensor
- HI-7698194-3 Four ring, stainless steel conductivity sensor
- HI-7698194-2 Galvanic dissolved oxygen sensor
-
On screen features
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and different languages for help screens and guides.
Quick Calibration
The quick calibration feature allows for a single point calibration for pH, conductivity, and dissolved oxygen all in a few simple steps.
Probe Details
The HI-7698194 is a multiparameter pH/EC/DO/Temperature probe for use with the HI-98194 portable meter.
It features a quick connect that makes a waterproof connection with the meter. Sensors are automatically recognised by the probe and meter when connected.
Any ports not used on the probe will not have the parameter displayed on the meter. Sensor replacement is quick and easy with field replaceable, screw type connectors that are colour coded for easy sensor identification.
The probe features a multistrand-multiconductor shielded cable with 4m, 10m, 20m, and 40m lengths available. It’s rugged, waterproof design makes it ideal for field use. IP68 sensor.
Rugged Carrying Case
The HI-98194 meter, probe, and all accessories are supplied in a rugged carrying case designed to provide years of use. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components.
Din Connection
IP68:
Electrode is dust-tight and protected against the effects of continuous immersion in water beyond 1m.
Specifications
Specifications
| pH/mV Range | 0.00 to 14.00 pH/± 600.0 mV | |
| Resolution | 0.01 pH/ 0.1 mV | |
| Accuracy | ±0.02 pH/ ±0.5 mV | |
| Calibration | automatic one, two or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer | |
| ORP Range | ±2000.0 mV | |
| ORP Resolution | 0.1 mV | |
| ORP Accuracy | ±1.0 mV | |
| ORP Calibration | automatic at one custom point (relative mV) | |
| EC Range | 0 to 200 mS/cm (absolute EC up to 400 mS/cm) | |
| EC Resolution | Manual: 1μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; automatic: 1μS/cm from 0 to 9999 μS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm; automatic mS/cm: 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm | |
| EC Accuracy | ±1% of reading or ± 1μS/cm whichever is greater | |
| EC Calibration | automatic single point, with six standard solutions (84μS/cm, 1413μS/cm, 5.00mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point | |
| TDS Range | 0 to 400.0 ppt (g/L) (the maximum value depends on the TDS factor) | |
| TDS Resolution | manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L); automatic: 1ppm (mg/L) from 0 to 9999 ppm (mg/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L); automatic ppt (g/L): 0.001 ppt (g/L) from 0.000 to 9.999 PPT(g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 pp (g/L) | |
| TDS Accuracy | ±1% of reading or ±1 ppm (mg/L) whichever is greater | |
| TDS Calibration | based on conductivity or salinity calibration | |
| Resistivity Range | 0 to 999999 Ω.cm; 0 to 1000.0 kΩ.cm; 0 to 1.0000 MΩ.cm | |
| Resistivity Resolution | dependent on resistivity reading | |
| Resistivity Calibration | based on conductivity or salinity calibration | |
| Salinity Range | 0.00 to 70.00 PSU | |
| Salinity Resolution | 0.01 PSU | |
| Salinity Accuracy | ±2% of reading or ±0.01 PSU whichever is greater | |
| Salinity Calibration | based on conductivity calibration | |
| Seawater σ Range | 0.0 to 50.0 σt, σ0, σ15 | |
| Seawater σ Resolution | 0.1 σ t, σ0, σ 15 | |
| Seawater σ Accuracy | ±1 σ t, σ0, σ 15 | |
| Seawater σ Calibration | based on conductivity or salinity calibration | |
| Dissolved Oxygen Range | 0.0 to 500.0%, 0.00 to 50.00 ppm | |
| DO Resolution | 0.%; 0.01 ppm (mg/L) | |
| DO Accuracy | 0.0 to 300.0%; ±1.5% of reading or ±1.0% whichever is greater; 300.0 to 500.0%; ±3% of reading; 0.00 to 30.00 ppm (mg/L); ±1.5% of reading or ±0.10 ppm (mg/L). whichever is greater; 30.00 ppm (mg/L) to 50.00 ppm (mg/L); ±3% of reading | |
| DO Calibration | automatic one or two points at 0.100% or one custom point | |
| Atmospheric Pressure Range | 450 to 850 mm Hg; 17.72 to 33.46 in Hg; 600.0 to 1133.2 mbar; 8.702 to 16.436 psi; 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa | |
| Atmospheric Pressure Resolution | 0.1 mm Hg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa | |
| Atmospheric Pressure Accuracy | ±3mm Hg within ±15°C from the temperature during calibration | |
| Atmospheric Pressure Calibration | automatic at one custom point | |
| Temperature Range | -5.00 to 55.00°C | |
| Temperature Resolution | 0.01°C | |
| Temperature Accuracy | ±0.15°C | |
| Temperature Calibration | Automatic at one custom point | |
| Additional Specifications | ||
| Maximum probe immersion | Depth - 20 metres | |
| Temperature compensation | automatic from -5 to 55°C | |
| Logging Memory | 45,000 records (continuous logging or log-on demand of all parameters | |
| Logging Interval | one second to three hours | |
| PC Connectivity | via USB (with Hanna PC software) | |
| Environment | 0 to 50°C; RH 100% IP67 | |
| Battery Type/Life | 1.5V AA batteries (4)/approximately 360 hours of continuous use without backlight (50 hours with backlight) | |
| Dimensions/Weight | 185 x 93 x 35.2 mm/400g | |

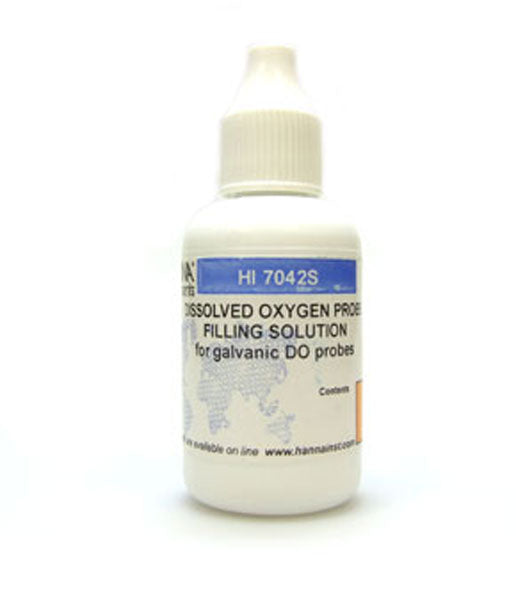

| Ordering information: | HI-98194 is supplied with HI-7698194 probe, HI-7698194-1 pH/ORP sensor, HI-7698194-3 EC sensor, HI-7698194-2 DO sensor, HI-76981942 Probe maintenance kit (HI-7042S DO electrolyte solution, DO membrane caps (5), O-rings for sensors (5), syringe with grease to lubricate the O-rings), HI-9298194 Hanna PC software, HI-920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate, and rugged carrying case with custom thermo-formed insert. HI-98194 is supplied with HI-7698194/4 multiparameter probe with 4m cable Also available: HI-98194/10 is supplied with HI-7698194/10 multiparameter probe with 10m cable HI-98194/20 is supplied with HI-7698194/20 multiparameter probe with 20m cable HI-98194/40 is supplied with HI-7698194/40 multiparameter probe with 40m cable |
|
| Accessories | HI-710034 Orange protective rubber boot |
