HI-901C1 Automatic Titration System
HI-901C1 Automatic Titration System
Price excludes VAT.
In stock
The HI-901C1 is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis.
Couldn't load pickup availability
Description
Description
HI-901C1 can perform acid/base, redox (ORP) complexometric, precipitation, non-aqueous, argentometric and ion selective titrations.
This powerful titrator dispenses the titrant, detects the endpoint, and performs all necessary calculations and graphing automatically. In addition to titration mode, the HI-901C also operates as a fully functional pH, mV/ORP, and ion selective electrode (ISE) meter.
This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard or user) can be easily transferred between titrators via USB flash drive or PC application.
Burette and dosing system
Exchangable Burette System - with Hanna’s clip-Lock™ burette feature, it only takes a few seconds to exchange titrants and reagents, preventing cross-contamination and saving time.
Multiple Burette Sizes - The HI-901C comes standard with a 25ml burette but may be equipped with a 5ml, 10ml or 50ml burette. Each burette is constructed with a ground glass syringe and chemically resistant PTFE plunger.
Linear and Dynamic Dosing
Precision Dosing Pump – Our unmatched 40,000 step piston driven pump is capable of dosing extremely small and precise volumes of titrant or reagent.
Chemically Resistant Tubing – Aspiration and dispensing tubes are made of durable, chemically resistant PTFE and feature a light-blocking polyurethane outer sleeve to protect light sensitive reagents.
Titration capabilities
- Dynamic Titrant Dosing
- Signal Stability Timing
- Equivalence Endpoint Detection
- Multiple Titration Types
Interface and Display

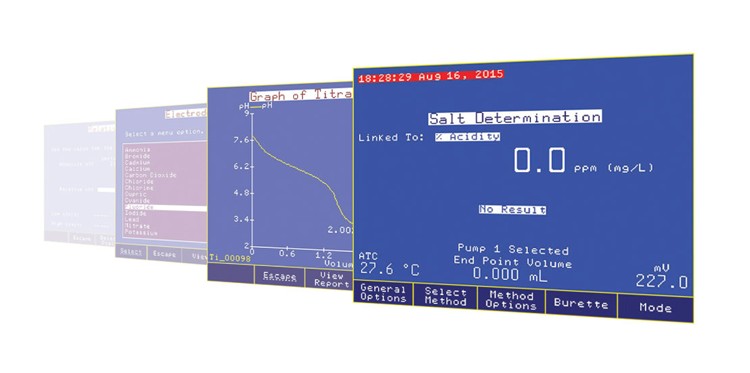

- Detailed Titration Graphs
- Interactive Colour Display
- Simple and Quick Navigation
Data and Storage
- Customisable titration reports
- Flexible GLP Management
- Effortless Data Transfer
Methods of analysis
Customisable Methods - The HI-901C can store up to 100 user-defined or standard titration methods. Each method may be customised and optimised for performance based on application and user requirements.
Titration method support - Onsite installation, training, and customisation is available from our titration experts. Hanna offers continued support via phone or email for any questions you might have along the way.
Market specific methods packs - Hanna offers titration method packages for various markets including food, beverage, dairy, wine, and more. Ask our product specialists about which methods would be best for you.
Adaptable standard methods - Ask our product specialists which standard methods are possible with the HI-901 system.
Connectivity and Functionality
Multi-functional with four working modes - The HI-901C functions as a titrator, pH meter, mV/ORP meter, and ISE meter. Valuable laboratory bench space is saved, and multiple analyses can be performed on one sample.
Multiple Connections - The titrator offers device support for two burettes and two analogue boards, which allows two electrodes and two stirrers to be simultaneously connected to one unit.
Multiple Peripherals - Users can print reports directly from the titrator using a standard parallel printer. An external monitor and keyboard may be attached for added versatility, as well as an analytical balance for automatic sample mass entry for titrators.
About versatile data management
HI-901 titration system can be easily incorporated into any existing GLP data management programme.
- Easily record all necessary GLP information with every sample, such as sample identification, company and operator name, date, time, electrode ID codes and calibration information.
- Data can be transferred to a PC using Hanna HI-900PC software

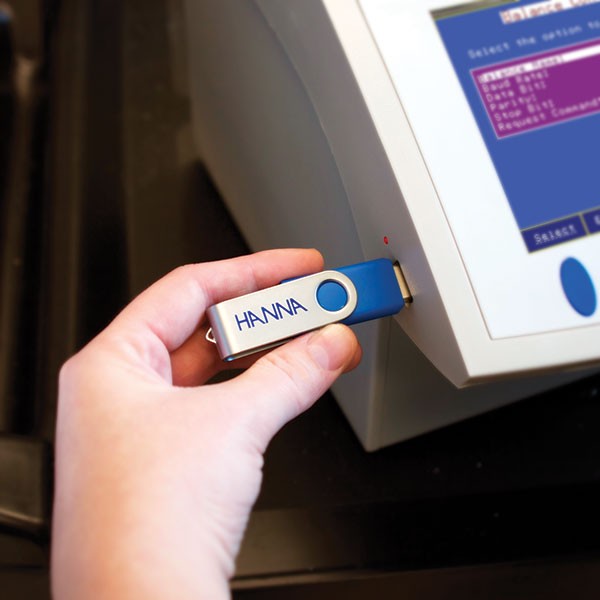

- The USB port allows for the easy transfer of methods, reports and software upgrades via USB flash drive
- Users can print reports of analyses directly from the titrator using a standard parallel printer
- An external monitor and keyboard can be attached for added versatility
PC Interface - Download test results to a computer programmed with HANNA’s Windows® compatible software directly from equipment via a USB port or a RS232 cable outlet.
Specifications
Specifications
| pH | ||
| Range | -2.0 to 20.0; -2.00 to 20.00 ; -2.000 to 20.000 | |
| Resolution | 0.1; 0.01; 0.001 pH | |
| Accuracy (@25°C/77°F) | ±0.1 mV | |
| Calibration | Up to five-point calibration, eight standard buffers and five custom buffers | |
| mV | ||
| Range | mV -2000.0 to 2000.0 | |
| Resolution | 0.1 mV | |
| Accuracy (@25°C) | ±0.1mV | |
| mV Calibration | Single Point Offset | |
| ISE | ||
| Range | 1 x 10-6 to 9.99 x 1010 | |
| Resolution | 1, 0.1, 0.01 | |
| Accuracy | ±0.5% monovalent; ±1% divalent | |
| Calibration | Up to five-point calibration, seven standard solutions and five user-defined standards | |
| Temperature | ||
| Range | -20.0 to 120.0°C | |
| Resolution | 0.1°C/0.1°F/0.1K | |
| Accuracy | ±0.1°C; ±0.2°F/±0.1K (excluding probe error) | |
| Analog Board(s) | Each analog board provides: BNC (pH/mV/ISE) Input (1), reference input (1), Temperature input (1), Stirrer input (1) | |
| Analog board capability | 1 | |
| Dosing pump capabilities | 2 | |
| Burette included | 1 (25ml) | |
| Burette Sizes | 5, 10, 25 and 50 mL | |
| Burette Resolution | 1/40000 | |
| Display Resolution | 0.001 mL | |
| Dosing Accuracy | ±0.1% of full burette volume | |
| Display | 5.7” (320 x 240 pixel) backlit colour LCD | |
| Languages | English, Portuguese, Spanish | |
| Methods | load up to 100 methods (standard and user-defined) | |
| Burette Auto-Detection | burette size is automatically recognised when inserted into the pump unit | |

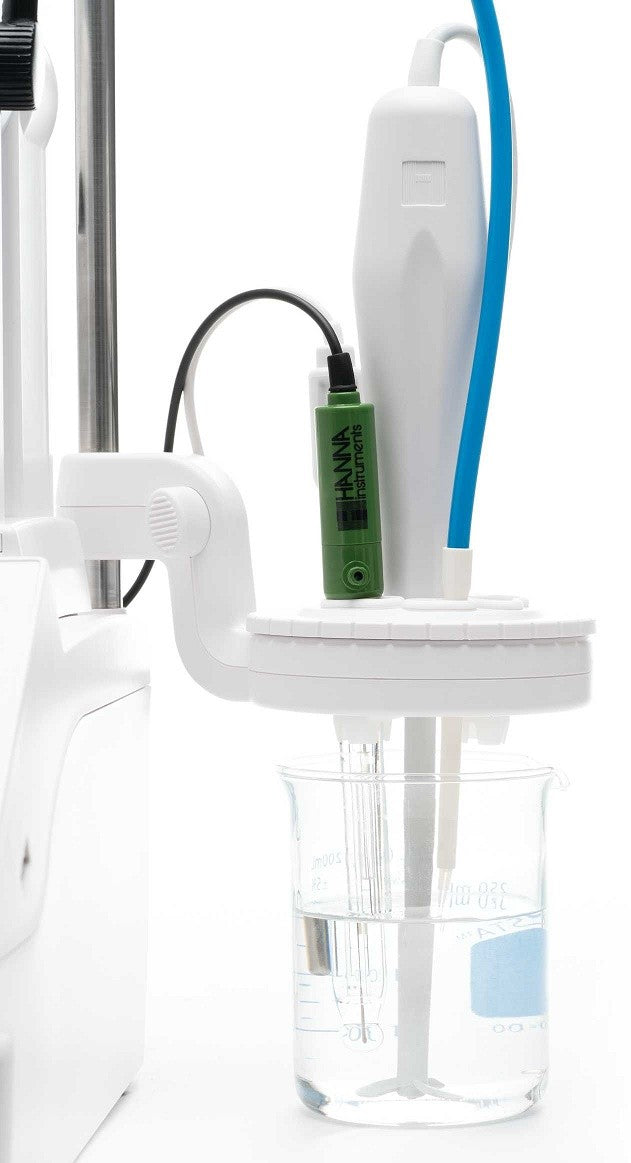

| Programmable Stirrer | overhead propeller type, 200-2500 RPM, resolution 100 rpm | |
| Flow Rate | user-selectable from 0.1 mL/min to 2 x burette volumes/min | |
| Temperature Compensation | manual or automatic (ATC) | |
| End-point Determination | equivalence point (1st or 2nd derivative) or fixed pH/mV value | |
| Potentiometric Titrations | acid-base (pH or mV-mode), redox, precipitation, complexometric, non-aqueous, argentometric | |
| Measurement Units | user specified expression of concentration units to suit specific calculation requirements | |
| Real Time & Stored Graphs | mV-volume or pH-volume titration curve, 1st derivative curve or 2nd derivative curve, in pH-mode, mV-mode or ISE mode; pH/mV/concentration values versus time | |
| Data Storage | up to 100 titration and pH/mV/ISE reports | |
| USB Host (Side) | flash drive compatibility for transfers of methods and reports | |
| Peripherals (Rear) | connections for VGA display, PC-keyboard, parallel printer, USB device input, RS232 | |
| GLP Conformity | instrumentation data storage and printing capabilities | |
| Operating Environment | 10 to 40°C (50 to 104°F), up to 95% RH | |
| Storage Environment | -20 to 70°C (-4 to 158°F), up to 95% RH | |
| Power | “-02” models: 230VAC | |
| Dimensions | 390 x 350 x 380 mm (15.3 x 13.8 x 14.9 in) | |
| Weight | approximately 9 kg (20 lbs.) with one pump, stirrer & sensors | |
| HI-901C1 | Titrator with one analogue board, overhead propeller stirrer with stand, 25ml glass burette, dosing pump drive, temperature sensor, USB cable, 256Mb USB flash drive and PC software. |
