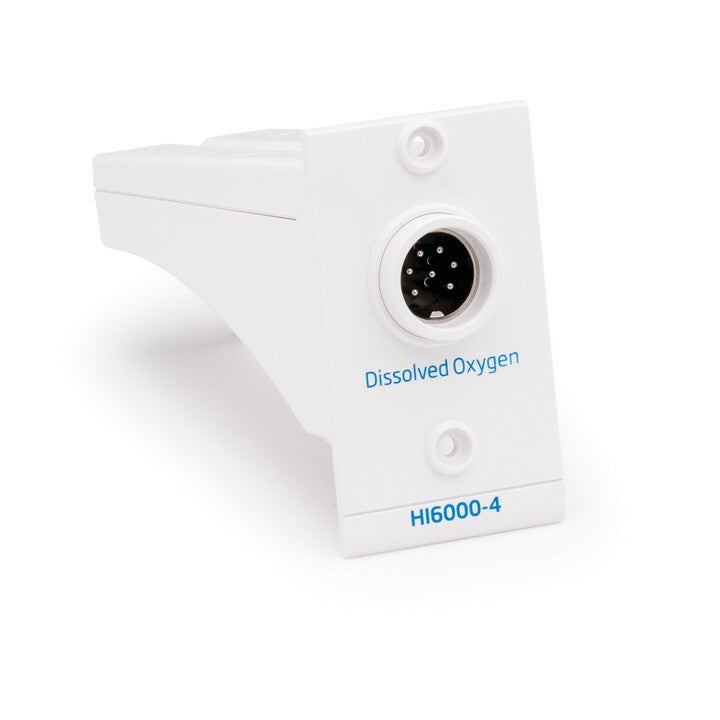

HI-6000-4 DO MODULE FOR HI-6000 SERIES BENCH MULTIPARAMETER
HI-6000-4 DO MODULE FOR HI-6000 SERIES BENCH MULTIPARAMETER
Price excludes VAT.
Hurry up, only 1 item left in stock.

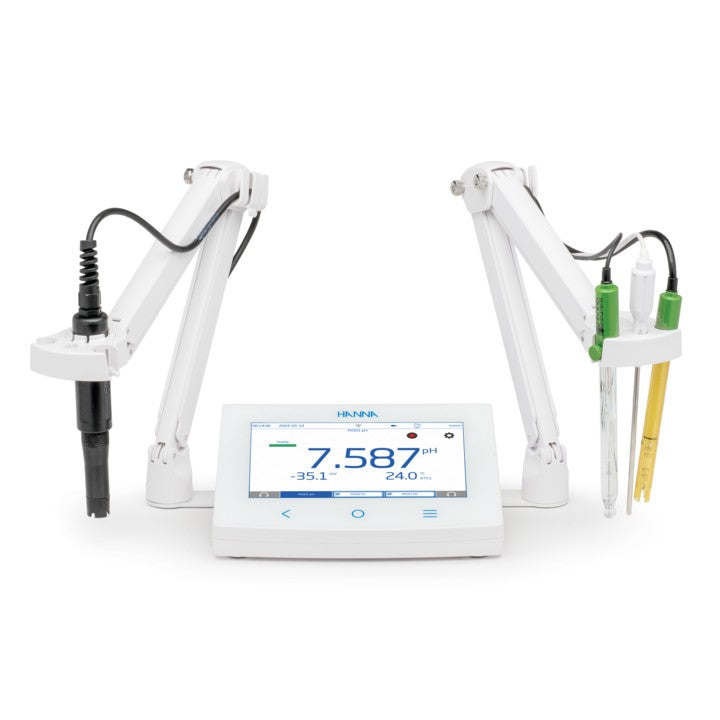

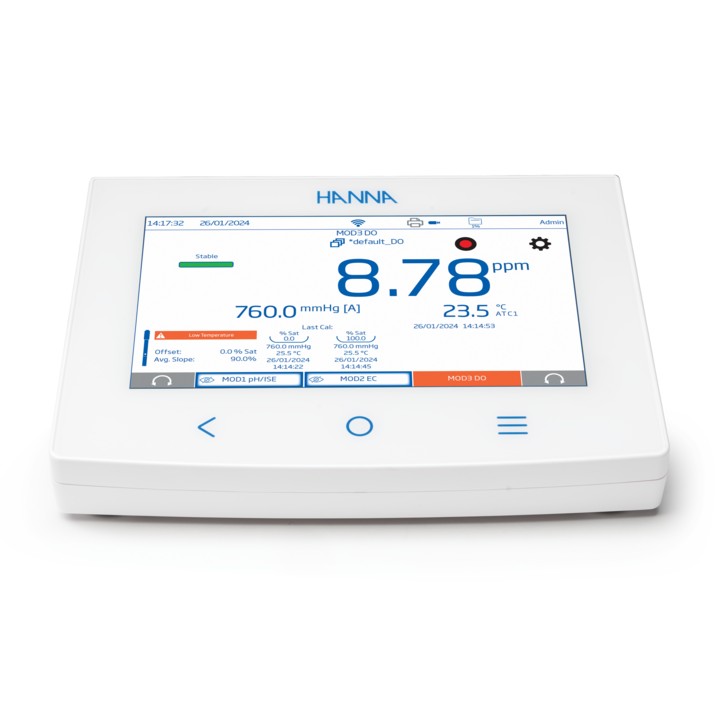

The HI6000-4 module measures DO along with HI-6000-02 series multiparameter bench meter.
Couldn't load pickup availability
Description
Description
Specifications
Specifications
| Dissolved Oxygen | ||
| Range | 0.00 to 90.00 mg/L (ppm) concentration; 0.0 to 600.0 % saturation | |
| Resolution | 0.01 mg/L (ppm); 0.1 % saturation | |
| Accuracy | Refer to individual specifications for probe used | |
| HI-7641133 DO Probe Specification | ||
| Probe Body Material | ABS | |
| Smart Cap™ material | Polypropylene | |
| Cable jacket material | PVC | |
| Cable Length | 1m | |
| probe guard | Stainless steel | |
| Temperature Measurement | Thermistor | |
| Pressure | 20m (29 PSI) | |
| Probe Dimensions with guard | 174 x 25mm | |
| Response Time | 45 seconds | |
| probe ingress protection rating | IP68 | |
| Sensor type | Optical; luminescence quenching | |
| HI-764833 Polarographic probe | ||
| Range | 0.00 to 90.00 mg/L (ppm) concentration; 0.0 to 600.0 % saturation | |
| Resolution | 0.01 mg/L (ppm); 0.1 % saturation | |
| Accuracy | ±1.5 % of reading ±1, least significant digit | |
| Barometric Pressure | ||
| Range | 450 to 850 mmHg; 600 to 1133 mBar; 60 to 113.32 kPa; 17.72 to 33.46 inHg; 8.702 to 16.436 psi; 0.592 to 1.1184 atm |
|
| Resolution | 1 mmHg; 0.1 mBar; 0.01 kPa; 0.01 inHg; 0.001 psi; 0.0001 atm | |
| Accuracy | ±3 mmHg within ±15 % from the calibration point ±3 mmHg ±1 least significant digit |
|
| Temperature | ||
| Range | −20.0 to 120.0 °C −4.0 to 248.0 °F 253.0 to 393.0 K |
|
| Resolution | 0.1 °C; 0.1 °F; 0.1 K | |
| Accuracy | Refer to specification of probe used | |
| DO Calibration | ||
| Points | One or two points at 100.0% (8.26 mg/L) and 0.0% (0.00 mg/L) automatic. Manual using a value entered by the user in % saturation, mg/L or ppm. |
|
| Temperature User Calibration | 1 point, configurable | |
| Salinity Compensation | Manual; 0.00 to 45.00 PSU or ppt 0.0 to 130.0 % |
