HI-6200505 AmpHel® Flat-tip Gold-Type ORP Electrode - General Purpose
HI-6200505 AmpHel® Flat-tip Gold-Type ORP Electrode - General Purpose
Price excluding VAT.
In stock
Gold ORP process electrode. Amplified with matching pin, PT100 temperature sensor, 5m cable and BNC connector. The amplified ORP electrode is designed for industrial applications.
Couldn't load pickup availability
Description
Description
With its durable design, you can count on this electrode to stand up to your process environment.
- Flat-tip ORP electrode
- Designed with ¾” external thread on both ends for easy installation
- Built for everyday, demanding use in industrial applications

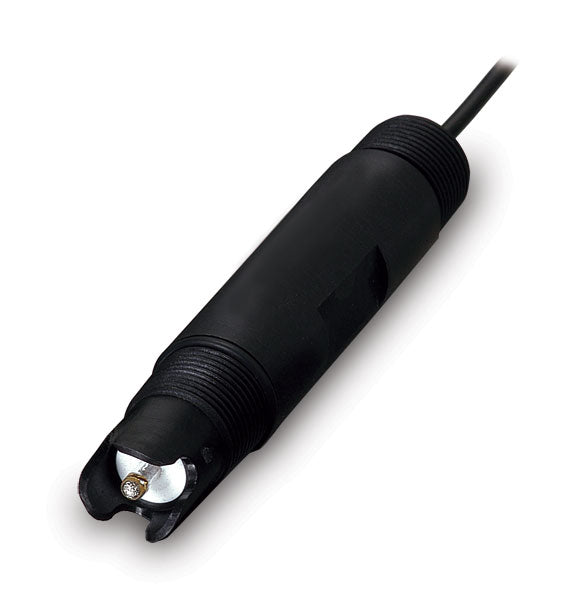

Gold ORP process electrode. Amplified with matching pin, PT100 temperature sensor, 5m cable and BNC connector.
Flat tip ORP electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Gold sensor
Required for measurement of cyanide or highly oxidative environments.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterised by high thermal stability and excellent chemical resistance.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
Specifications
Specifications
| Measurement Range | ORP: 2000 mV | |
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Glass Type | (-5 to 100°C) | |
| Tip / Shape | Flat, gold | |
| Matching Pin | Yes | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | No | |
| Cable | 5m | |
| Connector Type | BNC | |
| Amplifier | No |
