FC2320 pH Edge Electrode for Meat
FC2320 pH Edge Electrode for Meat
Price excludes VAT.
Hurry up, only 1 item left in stock.
The FC2320 is recommended for use with the HI-2020 edge® hybrid meter and designed to test the pH in meat.
Couldn't load pickup availability
Description
Description
FC2320 pH Edge Electrode for Meat
The FC2320 is a smart pH electrode for use with the HI-2020 Edge hybrid meter.
This electrode features a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by Edge once the electrode is plugged in.
Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode.
The FC2320 features an easy to plug in 3.5mm connector and is recommended for use in application specific purpose, meat.
Stainless Steel Blade
An optional stainless steel blade is attached to the probe for easy meat penetration, even in frozen samples. Slicing into the meat will allow for the pH glass and reference junction to be in contact with the sample, allowing for a direct pH measurement without extensive sample preparation. The FC098 (20 mm; 0.75”) and the FC099 (35mm; 1.38”) are the two stainless steel penetration blades to be used with the FC2320.
3.5 Connection – Phono plug electrode connection used on HANNA smart Edge electrodes. Provides a secure, easy-to-use connection.
Specifications
Specifications
| Description | digital pH electrode | |
| Reference | double, Ag/AgCl | |
| Junction | open | |
| Electrolyte | viscolene | |
| Max Pressure | 0.1 bar | |
| Range | pH: 0 to 12 | |
| Recommended Operating Temp. | 0 to 60°C | |

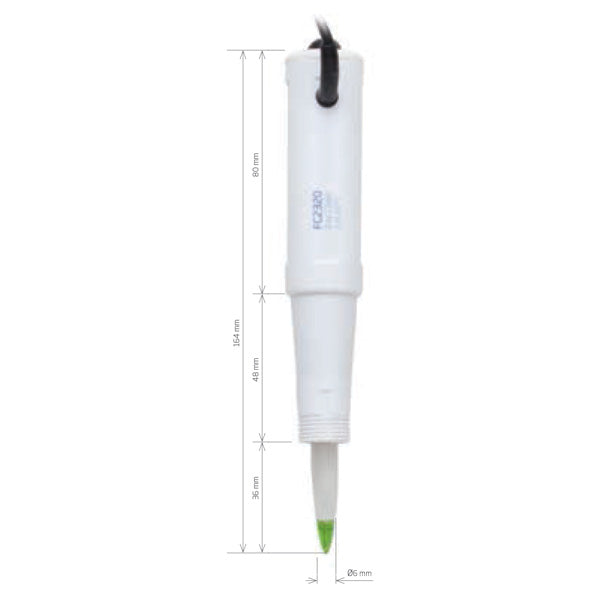

| Tip/Shape | conic (6 x 10 mm) | |
| Temperature Sensor | yes | |
| Matching Pin | no | |
| Amplifier | yes | |
| Body Material | PVDF | |
| Cable | 1m | |
| Recommended Use | application specific purpose, meat | |
| Connection | 3.5mm jack |
