HI-98192 Professional Waterproof EC/TDS/Resistivity/Salinity Meter
HI-98192 Professional Waterproof EC/TDS/Resistivity/Salinity Meter
Pris ekskl. mva.
Hurry up, only 3 items left in stock.
The HI-98192 is a waterproof, portable conductivity meter that has an expanded conductivity range from 0.000µS/cm to 400 mS/cm, as well as TDS, resistivity and three salinity scales.
Couldn't load pickup availability
Description
Description
The HI-98192 is a waterproof, portable conductivity meter that has an expanded conductivity range from 0.000µS/cm to 400 mS/cm, as well as TDS, resistivity and three salinity scales. This meter automatically recognises the probe type (two or four ring) and allows the user to adjust the nominal cell constant.
HI-98192 is also ready to perform all three stages USP <645> method required for EC measurement of ultrapure water. Choose from seven memorised standards and obtain up to a five point conductivity calibration. For salinity (% range), HI-7037 standard allows users to make a one point calibration.
EC and TDS measurements are fully customisable and include: cell constant selection between 0.010 and 10.000, selection of linear or natural water (non-linear) or no temperature compensation (for actual conductivity reading), configurable temperature compensation coefficient range from 0.00 to 10.00%/°C, choice of reference temperatures of 15°C, 20°C and 25°C, and a selectable TDS factor between 0.40 and 1.00.
Quick connect probe
The HI-763133 four ring Stainless Steel conductivity probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.
Data Logging
The HI-98192 allows storage of up to 400 log-on-demand samples or 1000 lot logging samples that can be later transferred to a PC with the supplied HI-920015 USB cable and HI-92000 software.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time and calibration values are stored for retrieval at a later time.
Key Features
- IP67 rated waterproof, rugged enclosure
- Salinity readings - Salinity can be displayed as % NaCl, seawater scale (ppt) or practical salinity scale (PSU)
- Calibration - perform up to a five point calibration for enhanced accuracy
Backlit Graphic LCD Display
The HI-98192 features a backlit graphic LCD with on-screen help. The graphic display allows for the use of virtual keys to provide for an intuitive user interface.
Waterproof Protection
The meter is enclosed in an IP67 rated waterproof casing and can withstand immersion in water at a depth of 1 m for up to 30 minutes.
Quick connect probe
The HI-763133 four-ring stainless steel conductivity probe features a quick connect DIN connector to make attaching and removing the probe simple and easy.
PC Connectivity
Logged data can be transferred to a Windows compatible PC with the included HI-920015 micro USB cable and HI-92000 software.
Calibration
Choose from seven memorized standards and obtain up to a five point conductivity calibration. For salinity (% range), HI-7037 standard allows users to perform a one point calibration.
USP <645>
HI-98192 can be used to perform all three stages of USP method required for EC measurement of ultrapure water and generates a report when the any of the three stages are met.
Three stages of conformity:
- Performs all 3 stages of USP <645> water quality testing requirements
On-screen guide:
- Users are provided with on-screen instructions for each USP stage
Progress bar:
- Displays reading stability progress towards meeting stage 2 requirements
Measurement
EC and TDS measurements are fully customizable and include: cell constant selection between 0.010 and 10.000, selection of linear or natural water (nonlinear) or no temperature compensation (for actual conductivity reading), configurable temperature compensation coefficient range from 0.00 to 10.00%/°C, choice of reference temperatures of 15°C, 20°C and 25°C, and a selectable TDS factor between 0.40 and 1.00. Ten sets of customized measurement parameters can be stored as a user profile and later recalled.
AutoHold
Pressing AutoHold during measurement will automatically hold the first stable reading on the display.
Dedicated Help Key
Contextual help is always available through a dedicated “HELP” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.

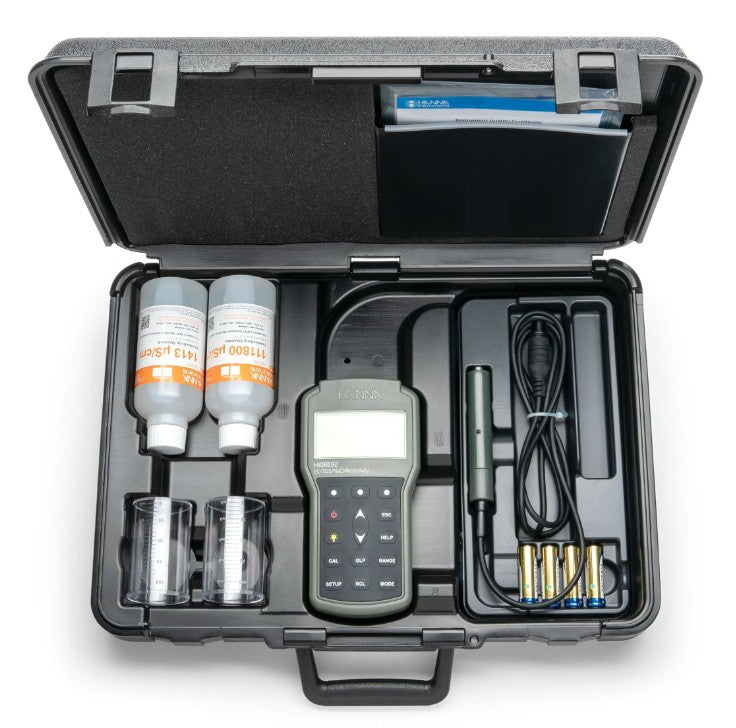

Supplied with
- HI-763133 platinum four ring conductivity/TDS probe
- HI-7031M
- HI-7035M
- Rugged carrying case
- 100mL plastic beaker (2)
- HI-92000 PC software
- HI-920015 micro USB cable
- Batteries
- Instruction manual
- Quality certificate
Specifications
Specifications
| EC - Range | 0 to 400 mS/cm (shows values up to 1000 mS/cm), actual conductivity 1000 mS/cm**; 0.001 to 9.999 µS/cm*; 10.00 to 99.99 µS/cm; 100.0 to 999.9 µS/cm; 1.000 to 9.999 mS/cm; 10.00 to 99.99 mS/cm; 100.0 to 1000.0 mS/cm (autoranging) | |
| Resolution | 0.001 µS/cm*; 0.01 µS/cm; 0.1 µS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm | |
| Accuracy | ±1% of reading (±0.01µS/cm or 1 digit, whichever is greater) | |
| Calibration | automatic up to five points with seven memorised standards (0.00 µS/cm, 84.0 µS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) | |
| TDS - Range | 0.00 to 99.99 mg/L (ppm); 100.0 to 999.9 mg/L (ppm); 1.000 to 9.999 g/L (ppt); 10.00 to 99.99 g/L (ppt); 100.0 to 400.0 g/L (ppt) (autoranging) | |
| Resolution | 0.01 mg/L (ppm); 0.1 mg/L (ppm); 0.001 g/L (ppt); 0.01 g/L (ppt); 0.1 g/L (ppt) | |
| Accuracy | ±1% of reading (±0.05 mg/L (ppm) or 1 digit, whichever is greater) | |
| Resistivity - Range | 1.0 to 99.9 Ω. cm; 100 to 999 Ω. cm; 1.00 to 9.99 KΩ. cm; 10.0 to 99.9 KΩ. cm; 100 to 999 KΩ. cm; 1.00 to 9.99 MΩ. cm; 10.0 to 100.0 MΩ. cm* (autoranging) | |
| Resolution | 0.1 Ω. Cm; 1 Ω. Cm; 0.01 KΩ. cm; 0.1 KΩ. cm; 1 KΩ. cm; 0.01 MΩ. cm; 0.1 MΩ. cm* | |
| Accuracy | ±1% of reading (±10 Ω or 1 digit, whichever is greater) | |
| Salinity - Range | % NaCl: 0.0 to 400.0 %; practical salinity: 0.00 to 42.00 (PSU); seawater scale: 0.00 to 80.00 (ppt) | |
| Resolution | 0.1 %; 0.01 | |
| Accuracy | ±1% of reading | |
| Calibration | max. one point only in % range (with HI-7037 standard); use conductivity calibration for all other ranges | |
| Temperature - Range | -20.0 to 120.0 °C | |
| Resolution | 0.1 °C | |
| Accuracy | ±0.2°C (excluding probe error) | |
| Calibration | one or two points | |
| Additional Specifications: | ||
| Cell Constant Setup | 0.010 to 10.000 | |
| Temperature Compensation | NoTC, linear (-20.0 to 120.0°C), non linear (0 to 36°C) ISO/DIS 7888 std | |
| Reference Temperature | 15°C, 20°C and 25°C | |
| Temperature Coefficient | 0.00 to 10.00 %/°C | |
| TDS factor | 0.40 to 1.00 | |
| Probe | HI-763133 stainless steel, four-ring conductivity/TDS probe with internal temperature sensor and 1.5 m (4.9’) cable (included) | |
| Logging | log-on demand: 400 samples; lot logging: 5, 10, 30 sec, 1, 2, 5, 10, 15, 30, 60, 120, 180 min (max 1000 samples) | |
| Memorised Profiles | up to 10 | |
| Measurement Modes | autorange, autoend, lock and fixed range | |
| PC Connectivity | opto-isolated sealed USB (with HI-92000 software and micro USB cable) | |
| Battery Type/Life | 1.5V AA batteries (4)/approximately 100 hours of continuous use (without backlight), 25 hours with backlight | |
| Auto-off | user selectable: 5, 10, 30, 60 min, disabled | |
| Environment | 0 to 50°C; RH 100% IP67 | |
| Dimensions/Weight | 185 x 95 x 35.2 mm/400g |
