HI-7698194-3 EC Sensor
HI-7698194-3 EC Sensor
Price excludes VAT.
In stock

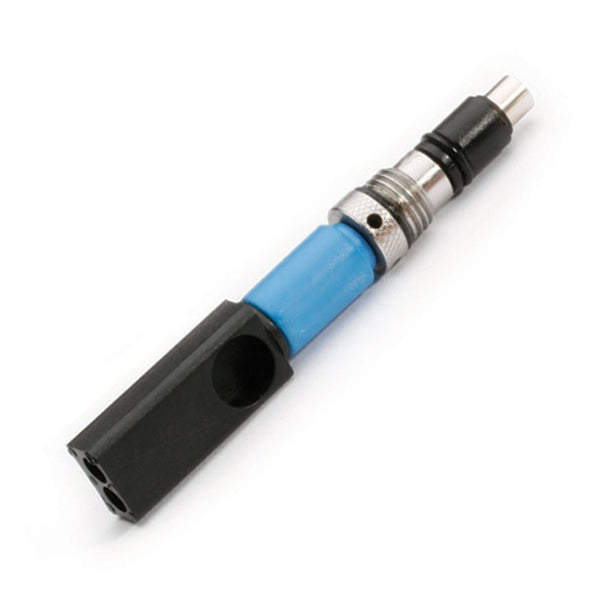

The HI-7698194-3 is an EC sensor for use with the HI-7698194-3 multiparameter pH/EC/DO/Temperature probe for the HI-98194 portable meter.
Couldn't load pickup availability
Description
Description
The HI-7698194-3 is an EC sensor for the HI-7698194 multiparameter pH/EC/DO temperature probe for use with the HI-98194 portable meter.
The probe features a quick connect that makes a waterproof connection with the meter. Sensors are automatically recognised by the probe and meter when connected. Any ports not used on the probe will not have the parameter displayed on the meter. Sensor replacement is quick and easy with field replaceable, screw type connectors that are colour coded for easy sensor identification. The probe features a multistrand-multiconductor shielded cable with 4m, 10m, 20m and 40m lengths available. It's rugged waterproof design makes it ideal for field use.
Specifications
Specifications
| EC Sensor | HI-7698194-3 | |
| Measurement | EC | |
| Measurement Range | 0.0 to 200.0mS/cm; 0.0 to 400mS/cm (absolute) | |
| Temperature range | -5 to 55°C | |
| Colour code | Blue | |
| Materials: | ||
| Tip | Stainless steel electrodes AISI 316 | |
| Body | ABS/epoxy | |
| Maintenance Solution | None | |
| Dimensions | 111 x 17mm | |
| Depth | 20m |
