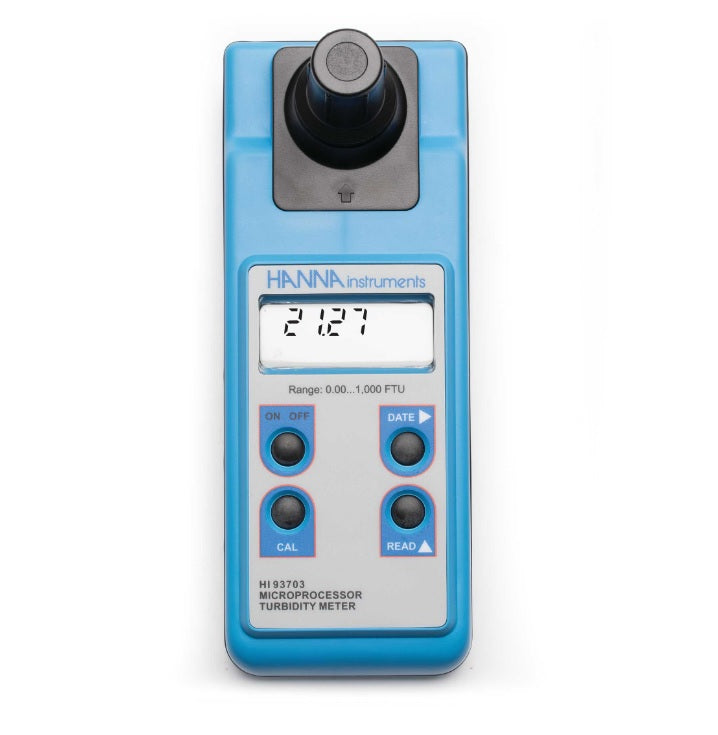

Hanna HI-93703C – Portable Turbidity Meter Kit
Short Intro
Hanna HI-93703C – Portable Turbidity Meter Kit is a field-ready instrument designed for accurate turbidity measurement in water samples. Based on the nephelometric method, it provides reliable results for environmental and industrial applications.
Couldn't load pickup availability
Description
Description
Hanna HI98713 – Portable Turbidity Meter Kit
Hanna HI98713 – Portable Turbidity Meter Kit is a high-precision instrument for turbidity measurement according to ISO 7027 using an infrared nephelometric method. Designed for professional water analysis in laboratory and field environments.
Turbidity is a key parameter in water quality monitoring, indicating the presence of suspended particles that affect clarity, filtration efficiency, and regulatory compliance. The HI98713 measures turbidity in FNU, NTU, and EBC using an infrared nephelometric method compliant with ISO 7027, ensuring accurate results independent of sample color.
The instrument is used in drinking water treatment, wastewater monitoring, environmental analysis, and industrial process control. Its optical system minimizes stray light and color interference, providing stable measurements even at low turbidity levels. The design supports both laboratory and field use, with built-in data logging and multi-point calibration for consistent performance.

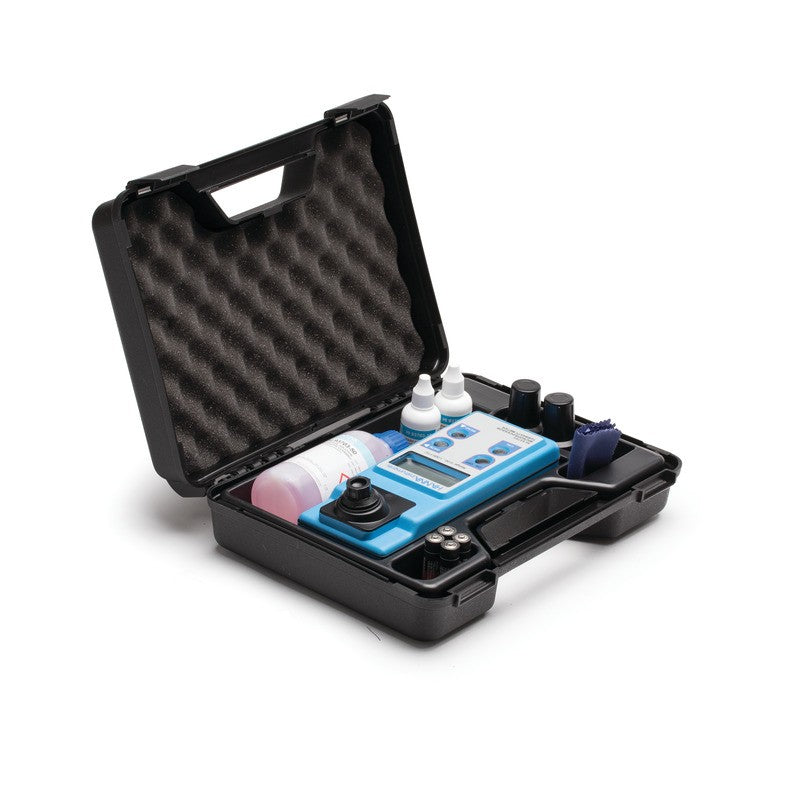

The kit includes cuvettes, calibration standards, and essential accessories required for immediate use.
How to measure
- Fill the cuvette with the sample, avoiding bubbles.
- Clean and dry the outside of the cuvette.
- Insert the cuvette into the instrument and close the lid.
- Start the measurement.
- Read the turbidity value.
Technical Specifications
- Range: 0.00 to 9.99 FNU; 10.0 to 99.9 FNU; 100 to 1000 FNU
- Resolution: 0.01 / 0.1 / 1 FNU
- Accuracy: ±2% of reading plus 0.02 FNU
- Repeatability: ±1% of reading or 0.02 FNU
- Light source: Infrared LED
- Detector: Silicon photocell
- Method: Nephelometric (ISO 7027)
- Calibration: 2, 3 or 4-point
- Display: Backlit LCD
- Data logging: Yes
- Battery: Rechargeable
- Environment: 0 to 50°C; max 95% RH
- Dimensions: 224 x 87 x 77 mm
- Weight: approx. 512 g
Packing Information
- HI98713 turbidity meter
- Glass cuvettes with caps
- Calibration standards
- Cleaning cloth
- Rechargeable battery and charger
- Instruction manual
- Carrying case
Specifications
Specifications
| Range | 0.00 to 50.00 FTU; 50 to 1000 FTU |
|
| Resolution | 0.01 FTU (0.00 to 50.00 FTU); 1 FTU (50 to 1000 FTU) |
|
| Accuracy | ±0.5 FTU or ±5% of reading (whichever is greater) | |
| Calibration | 3 points (0 FTU, 10 FTU and 500 FTU) | |
| Light Source | infrared LED | |
| Light Life | Life of the instrument | |
| Light Detection | Silicon Photocell | |
| Battery Type / Life | 4 x 1.5V AA / approx. 60 hours of continuous use or 900 measurements; automatic shut-off after 5 minutes of non-use |
|
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing | |
| Dimensions | 220 x 82 x 66 mm (8.7 x 3.2 x 2.6") | |
| Weight | 510 g (1.1 lb.) |
