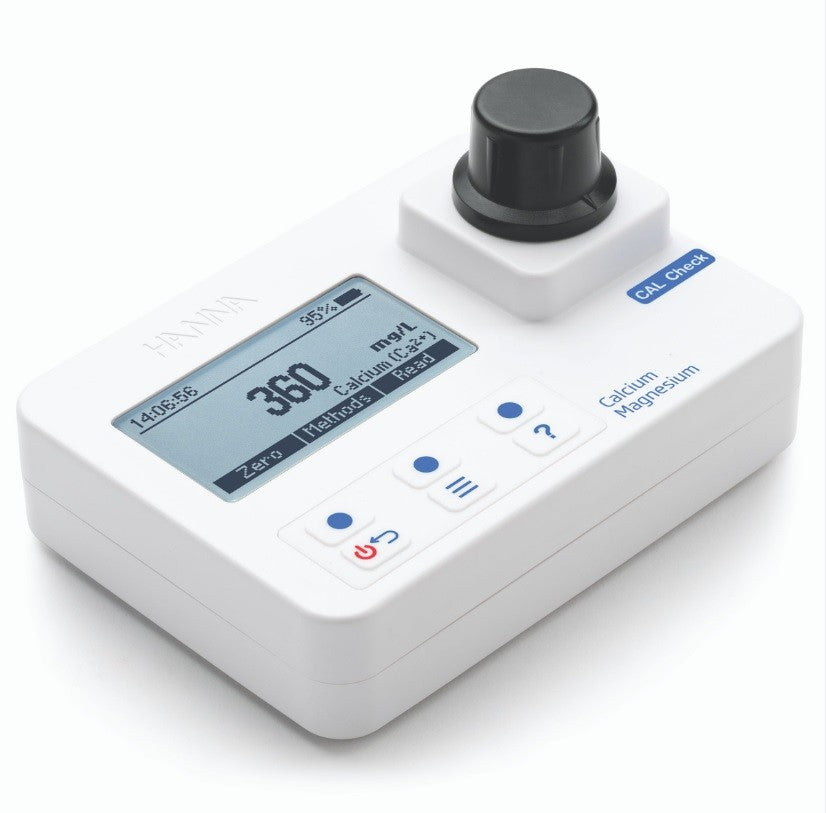

HI-97752 Calcium and magnesium photometer: Range: Ca: 0 to 400 mg/L, Mg: 0 to 150 mg/L
HI-97752 Calcium and magnesium photometer: Range: Ca: 0 to 400 mg/L, Mg: 0 to 150 mg/L
Hurry up, only 1 item left in stock.
The HI-97752 is an auto-diagnostic portable photometer that benefits from Hanna’s years of experience as a manufacturer of analytical instruments. It has an advanced optical system that uses a Light Emitting Diode (LED) and a narrow band interference filter that allows for accurate and repeatable readings.
Couldn't load pickup availability
Description
Description
Each photometer is delivered in a cardboard box and is supplied with:
- Sample cuvette (2 pcs.)
- Sample cuvette cap (2 pcs.)
- Plastic stopper (2 pcs.)
- 1.5V AA Alkaline batteries
- Instrument quality certificate
- Instruction manual
The optical system is sealed from outside dust, dirt and water. The meter uses an exclusive positive-locking system to ensure that the cuvettes are placed into the holder in the same position every time.
With the CAL Check™ functionality, users are able to validate the performance of the instrument at any time and apply a user calibration (if necessary). Hanna Instruments CAL Check cuvettes are made with NIST traceable standards.
The built-in tutorial mode guides users step-by-step through the measurement process. It includes all steps required for sample preparation, the required reagents and quantities.
The HI-97752 meter measures two important parameters in:
- drinking water
- surface water
- ground water
- wastewater
- swimming pools
Calcium is a vital plant nutrient and helps to strengthen plant cell walls protecting against heat stress. The method for calcium is an adaptation of the Oxalate Method.
Magnesium is an essential nutrient and helps build a strong immune system. The method for magnesium is an adaptation of the Calmagite Method.
The HI-97752 photometer is a compact and versatile meter suitable for field or bench measurements, featuring a:
- Sophisticated optical system
- Meter validation using certified CAL Check cuvettes
- Tutorial mode guides the user step-by-step
- Auto logging
- Waterproof IP67, floating case
- GLP features
About Calcium and Magnesium
Calcium and magnesium both play important roles in the growth of plants. Calcium helps plant roots develop and increases the resistance and strength of plant tissues and stems. Magnesium is an indispensable mineral that helps in the production of chlorophyll, the light-absorbing green pigment that serves as an energy source for plants. It also increases vitamin concentrations and aids in uptake of phosphorus within the plant body.
Specifications
Specifications
| Calcium Range | 0 to 400 mg/L (as Ca2+ | |
| Calcium Resolution | 1 mg/L | |
| Calcium Accuracy | ±0.10 mg/L ±5% of reading | |
| Method | Adaptation of the Oxalate Method | |
| Magnesium Range | 0 to 150 mg/L (as Mg2+ | |
| Magnesium Resolution | 1 mg/L | |
| Magnesium Accuracy | ±5 mg/L ±3% of reading | |
| Method | Adaptation of the Calmagite method |
| Photometer/Colorimeter Light Source | Light emitting diode | |
| Photometer/Colorimeter Light Detector | Silicon photocell with narrow band interference filter @ 420 nm | |
| Bandpass Filter Bandwidth | 8 nm | |
| Bandpass Filter Wavelength Accuracy | ±1.0 nm | |
| Cuvette Type | round, 24.6 mm diameter (22 mm inside) | |
| GLP | Date, time of last calibration | |
| Display | 128 x 64 pixel B/W LCD with backlight | |
| Logging Type | automatic logging | |
| Logging Memory | 50 measurement | |
| Battery Type/Life | 1.5V AA battery (3 pcs.) / > 800 measurements (without backlight) | |
| Automatic Shut-Off | After 15 minutes of inactivity (30 minutes before a READ measurement) | |
| Environment | 0 to 50°C (32 to 122°F); relative humidity: 100% (IP 67, floating case) | |
| Weight | 380g with batteries | |
| Dimensions | 142.5 x 102.5 x 50.5 mm |
Safety Data Sheet
Safety Data Sheet
Manuals
Manuals
