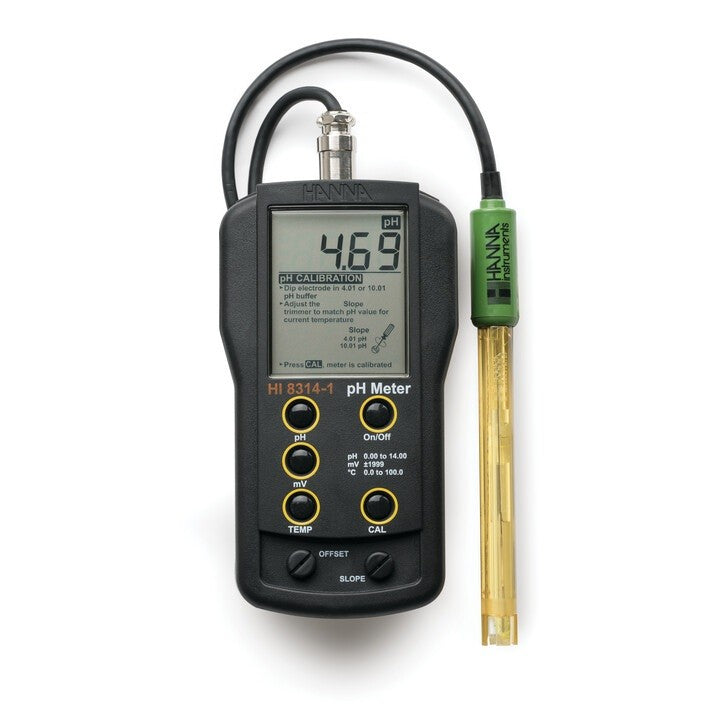

HI-8314-1 Analog pH, mV, temp meter with HI-1217-1 electrode
HI-8314-1 Analog pH, mV, temp meter with HI-1217-1 electrode
Price excludes VAT.
In stock
The HI-8314-1 is a portable pH/mV meter designed to be accurate, reliable and easy to use.
Couldn't load pickup availability
Description
Description
HI-8314-1:
Analog pH, Mv, °C meter with HI-1217-1 electrode. pH range: 0.00 to 14.00 pH, mV: ±1999 mV, Temperature: 0.0 to 100.0°C
Capable of measuring pH/mV and temperature, these meters are great for field work, providing one meter for multiple uses.
Features:
- Automatic Temperature Compensation (ATC)
- Two-point calibration
- Water-resistant
- Compact, heavy-duty casing
- Battery indicator
- Auto shut-off
The HI-8314-1 uses the HI-1217-1 pre-amplified pH electrode with built-in internal temperature sensor.
Manual calibration is performed at one or two points by adjusting the trimmers on the front panel. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy.
This instrument can also be used for ORP measurements with the optional probes:
- HI-8314-1 uses HI-3618D or HI-4619D
Specifications
Specifications
| pH Range | 0.00 to 14.00 | |
| pH Resolution | 0.01 | |
| Accuracy | ±0.01 | |
| Calibration | manual, two point, via trimmers | |
| Temperature compensation | automatic 0 to 70°C | |
| mV range | ±1999mV | |
| mV resolution | 1 mV | |
| mV accuracy | ±mV | |
| Temperature Range* | 0.0 to 100.0°C - *limits will be reduced by actual sensor limits | |
| Resolution | 0.1°C | |
| Accuracy | ±0.4 | |
| pH Electrode with temp sensor | HI-1217-1 PEI body, pre-amplified pH electrode with internal temperature sensor, DIN connector, and 1 metre cable included | |
| Slope/Offset calibration | from 80 to 110% / ±1pH | |
| Battery type / life | 9V / approx. 450 hours of continuous use | |
| Auto shut off | after 8 minutes of non-use | |
| Environment | 0 to 50°C; RH max 95% non-condensing | |
| Dimensions | 145 x 80 x 36mm | |
| Weight | 230g | |
| Ordering information | HI-8314-1 is supplied with HI-1217-1 pH electrode, HI-70004 pH 4.01 buffer sachet, HI-70007 pH 7.01 buffer sachet, HI-700601 electrode cleaning solution sachet x 2, calibration screw driver, battery, protective case, and instructions. | |
| Accessories to buy separately | HI-710007 blue shockproof rubber boot; HI-710008 orange shockproof rubber boot |
