HI-766D K-type Thermocouple Probe for air and gases
HI-766D K-type Thermocouple Probe for air and gases
In stock

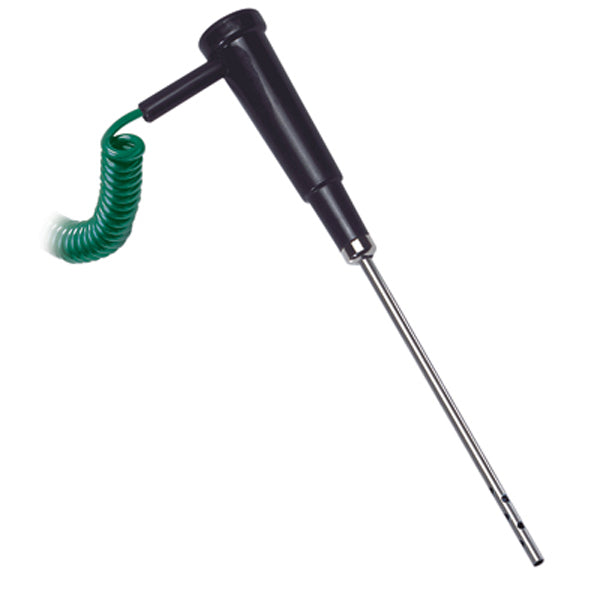

The HI-766D is an air and gas K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A green cable extends 1 m (3.3’) from the handle to the thermocouple connector with the meter.
Couldn't load pickup availability
Description
Description
The Air and Gas K-Type Thermocouple Probe with Handle – HI-766D is designed to measure the temperature of air and gas samples. The response time of a measurement is affected by the position of the sensor relative to the substance being measured. The HI-766D construction with vent holes located at the tip of the probe offers a 20-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure gaseous samples up to 300°C (570°F).
Specifications
Specifications
| Application | Air and Gases | |
| Max Temperature | 300°C (570°F) | |
| Sensor | K-Type Thermocouple | |
| Response Time | 20 seconds | |
| Probe Dimensions | L 245 mm x dia 3 mm | |
| Probe Material | stainless steel | |
| Cable Length | green/ 1m |
Safety Data Sheet
Safety Data Sheet
Manuals
Manuals
