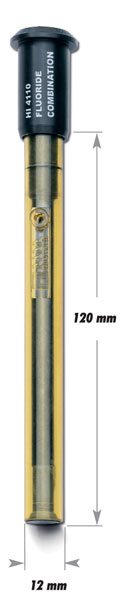

HI-4110 Fluoride Combination ISE Electrode

The lanthanum fluoride crystal membrane produces a potential change due to the fluoride ion exchange between the membrane and the sample. The internal sensing elements are housed within a durable body, composed of a mixture of polyetherimide (PEI) and epoxy.

The HI-4110 is ideal for a variety of applications in drinking water treatment, environmental monitoring, soft drinks, wine, plants, emulsified food products, plating and pickling acids.

• Solid state sensor
• Skirted cone geometry
• Detection from 0.02 mg/L to saturated F-

The HI-4110 is a Fluoride combination ISE ideal for the detection of Free Fluoride in potable water, soft drinks, wine, plants, emulsified food products, plating and pickling acids.

The HI-4110 fluoride selective electrode is a complete potentiometric cell that contains a silver/silver chloride (Ag/AgCl) reference housed within a PEI/epoxy body with a potassium nitrate/potassium chloride electrolyte. The internal elements are isolated from the sample by a lanthanum fluoride crystal membrane.

Hanna’s solid state combination ISEs are designed with a cone style junction. The skirted cone geometry of the sensor forms the liquid junction with the test solution at the tip of the junction cone, producing a highly stable reference potential and consistent flow rates of electrolyte into the solution. A simple press of the top portion of the ISE makes it easy to empty the electrolyte fill solution and replace when necessary.

For the HI-4110 to accurately measure total fluoride concentration, it is important that the pH and ionic strength of the standards and sample be adjusted to a constant value. The total ionic strength adjustment buffer (TISAB) ensures that the solution pH is between pH 5 and 8 and that the activity coefficient is constant. The TISAB solution also preferentially complexes with various metal ions, such as aluminium and iron, which tend to form complexes with fluoride ions. TISAB thus ensures that these metal ions do not interfere, permitting an accurate total fluoride measurement. Measuring all solutions with a constant pH and ionic strength reduces the margin of error between measurements. The HI-4110 fluoride solid state ion selective electrodes can measure from 1µM (0.02 mg/L) to saturated F-.

Features

• Replaceable Sensing Modules - Combination solid state ion selective electrodes are electrodes that detect free ions in a solution. The lanthanum fluoride crystal sensing membrane is replaceable and easy to attach to the sensor body.
• Durable PEI Body - The probe body is composed of a mixture of polyetherimide (PEI) and epoxy.
• BNC Connection - The HI-4110 has a universal BNC connector for easy connection to any benchtop meter with a female BNC probe input.
